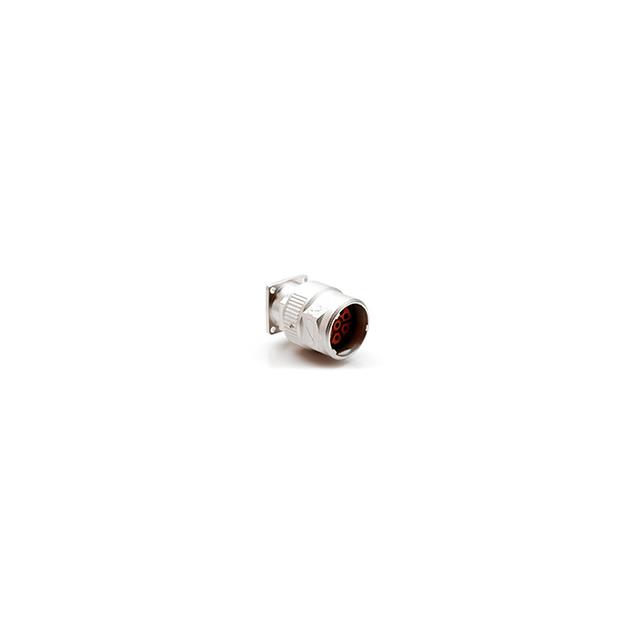

MB2GJNNG36

Active

Amphenol Sine Systems Corp

9 (3+6) POSITION PANEL MOUNT PLU

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

9 (3+6) POSITION PANEL MOUNT PLU

Technical Specifications

Parameters and characteristics for this part

Specification	MB2GJNNG36

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	2 mm, 1 mm
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	5
Number of Positions [custom]	9
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Female Sockets

Part	Shell Material	Contact Shape	Material Flammability Rating	Ingress Protection	Shielding	Contact Size	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Feature	Orientation	Number of Positions	Type	Shell Finish	Shell Size - Insert	Note	Features	Contact Type	Insert Material	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol Sine Systems Corp MB2GJN0600	Zinc Die Cast	Circular	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	2 mm	Silver	-20 C	130 °C	Plug Housing	Flange	Keyed	6	For Female Sockets	Nickel	M23-6	Contacts Not Included	Coupling Nut	Crimp	Polyamide (PA66) Nylon 6/6
Amphenol Sine Systems Corp MB2GJNNG36	Zinc Die Cast	Circular	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	1 mm 2 mm	Silver	-20 C	130 °C	Plug Housing	Flange	Keyed		For Female Sockets	Nickel	M23-9	Contacts Not Included	Coupling Nut	Crimp	Polyamide (PA66) Nylon 6/6	PE	3	5	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 17.81

General part information

9 (5 + 3 Power + PE) Position Circular Connector Plug Housing Panel Mount Coupling Nut
