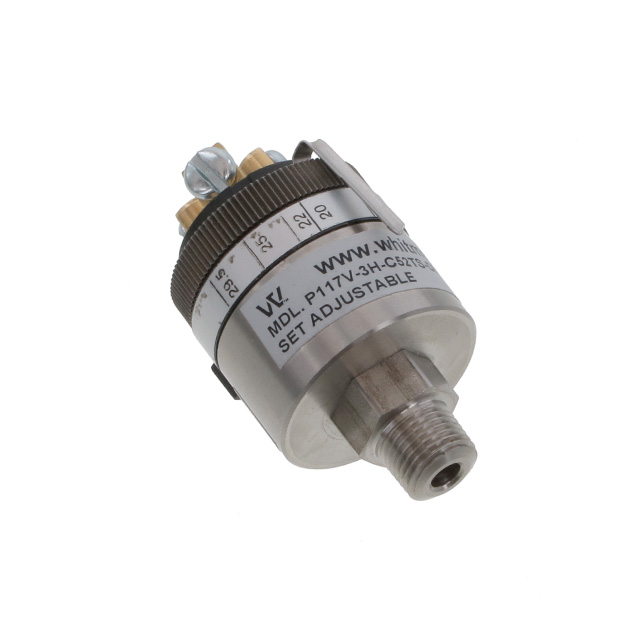

P117V-3H-C52TS-DIS
ActiveWhitman Controls, LLC
VACUUM SWITCH 2.7-28.2 INHG
Deep-Dive with AI
Search across all available documentation for this part.
P117V-3H-C52TS-DIS
ActiveWhitman Controls, LLC
VACUUM SWITCH 2.7-28.2 INHG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P117V-3H-C52TS-DIS |
|---|---|
| Accuracy | 4.14 kPa |
| Accuracy | 0.6 PSI |
| Maximum Pressure | 101.25 kPa |
| Maximum Pressure | 14.7 PSI |
| Operating Pressure [Max] | 14.15 PSI |
| Operating Pressure [Max] | 97.53 kPa |
| Operating Pressure [Min] | 9.14 kPa |
| Operating Pressure [Min] | 1.33 PSI |
| Operating Temperature [Max] | 107 °C |
| Operating Temperature [Min] | -54 °C |
| Output Type | SPDT |
| Package / Case | Cylinder, Threaded |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 142.11 | |
| 5 | $ 130.17 | |||
Description
General part information
P117V Series
VACUUM SWITCH 2.7-28.2 INHG
Documents
Technical documentation and resources
No documents available
