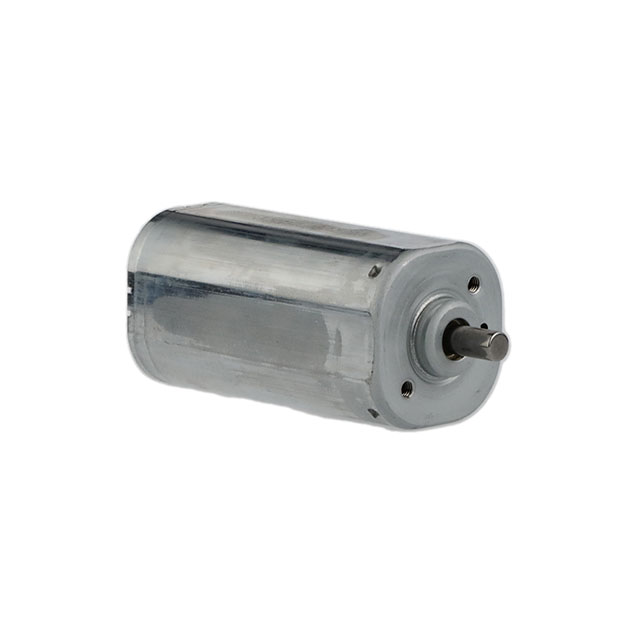

SE30R2NTCD
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 5300 RPM 24V
Deep-Dive with AI
Search across all available documentation for this part.
SE30R2NTCD
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 5300 RPM 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE30R2NTCD |
|---|---|
| Diameter - Shaft [diameter] | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 13 mm |
| Length - Shaft and Bearing [x] | 0.512 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 22 mm |
| Mounting Hole Spacing | 0.866 in |
| RPM | 5300 RPM |
| Size / Dimension [x] | 1.181 in |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [y] | 1.181 in |
| Size / Dimension [y] | 30 mm |
| Termination Style | Connector |
| Torque - Rated (oz-in / mNm) | 70 mNm |
| Torque - Rated (oz-in / mNm) | 9.91 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VDC |
| Weight | 210.01 g |
| Weight | 0.463 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.36 | |
| 80 | $ 14.98 | |||
| 160 | $ 13.53 | |||
Description
General part information
SE30R2NT Series
Brushed DC Motor Standard 5300 RPM 24VDC
