7-361-BA

Active

Tusonix a Subsidiary of CTS Electronic Components

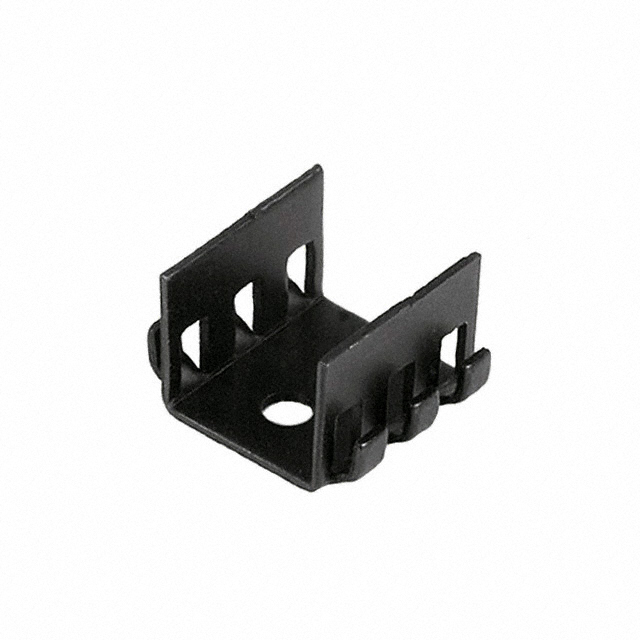

HEATSINK VERT HORZ TO-220

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK VERT HORZ TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	7-361-BA

Attachment Method	Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	0.71 "
Length	18.03 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	1.5 W, 40 °C
Shape	Rectangular, Fins
Thermal Resistance @ Natural	30 °C/W
Type	Board Level
Width [y]	0.8 in
Width [y]	20.32 mm

Part	Type	Fin Height [z]	Fin Height [z]	Package Cooled	Shape	Material Finish	Power Dissipation @ Temperature Rise	Length	Length	Material	Attachment Method	Width [y]	Width [y]	Thermal Resistance @ Natural
Tusonix a Subsidiary of CTS Electronic Components 7-361-BA	Board Level	12.7 mm	0.5 in	TO-220	Rectangular Fins	Black Anodized	1.5 W 40 °C	0.71 "	18.03 mm	Aluminum	Bolt On	0.8 in	20.32 mm	30 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 1.5W @ 40°C Board Level
