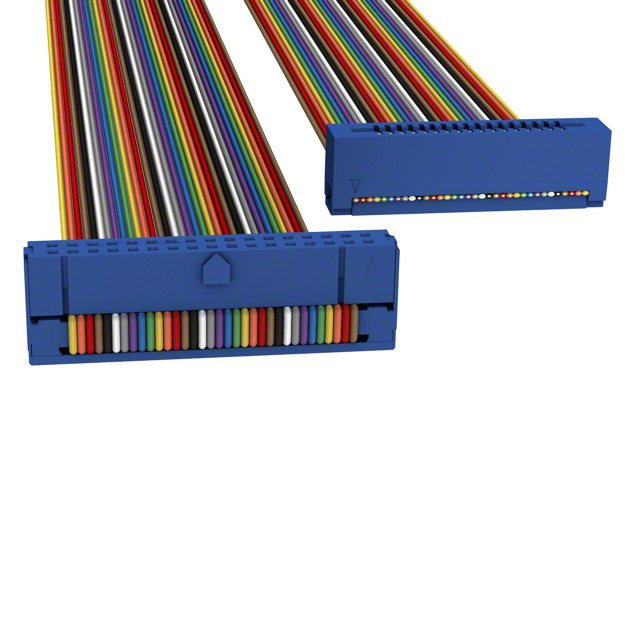

C3DEG-3436M

Active

CW Industries

IDC CABLE - CKR34G/AE34M/CCE34G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKR34G/AE34M/CCE34G

Technical Specifications

Parameters and characteristics for this part

Specification	C3DEG-3436M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Card Edge
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Rows	Length	Length	Length	Shielding	Color	Connector Type	Cable Termination	Pitch - Connector	Pitch - Connector	Features	Contact Finish	Pitch - Cable	Pitch - Cable	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]
CW Industries C3DEG-3406M	2	152.4 mm	6 "	0.5 '	Unshielded	Multiple Ribbon	Socket to Card Edge	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Gold	0.05 "	1.27 mm	34	10 Áin	0.25 Ám
CW Industries C3DEG-3418G	2				Unshielded		Socket to Card Edge	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Gold	0.05 "	1.27 mm	34	10 Áin	0.25 Ám	457.2 mm	1.5 ft
CW Industries C3DEG-3406G	2	152.4 mm	6 "	0.5 '	Unshielded		Socket to Card Edge	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Gold	0.05 "	1.27 mm	34	10 Áin	0.25 Ám
CW Industries C3DEG-3436M	2				Unshielded	Multiple Ribbon	Socket to Card Edge	IDC	0.1 in	2.54 mm	Polarizing Key Strain Relief	Gold	0.05 "	1.27 mm	34	10 Áin	0.25 Ám	914.4 mm	3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
