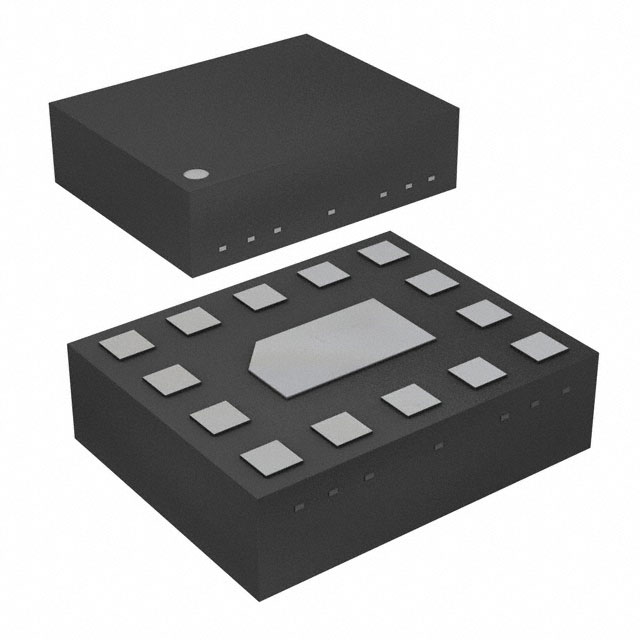

SKY13550-667LF
LTBSkyworks Solutions Inc.
IC RF SWITCH SP4T 3.8GHZ 14QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY13550-667LF
LTBSkyworks Solutions Inc.
IC RF SWITCH SP4T 3.8GHZ 14QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13550-667LF |
|---|---|
| Frequency Range [Max] | 3.8 GHz |
| Frequency Range [Min] | 400 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.8 dB |
| Isolation | 22 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 14-UFQFN Exposed Pad |
| RF Type | CDMA2000, UMTS |
| Supplier Device Package | 14-QFN (1.6x2) |
| Test Frequency | 3.8 GHz, 2.7 GHz |
| Voltage - Supply [Max] | 4.8 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.70 | |
| 6000 | $ 0.67 | |||
| 15000 | $ 0.65 | |||
Description
General part information
SKY13550 Series
RF Switch IC CDMA2000, UMTS SP4T 3.8 GHz 50Ohm 14-QFN (1.6x2)
