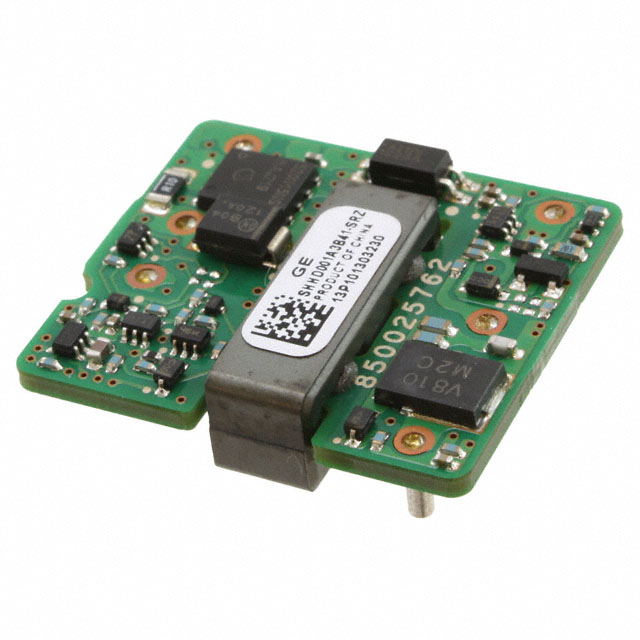

SHHD001A3B41-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 12V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SHHD001A3B41-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 12V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SHHD001A3B41-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 1.3 A |
| Efficiency | 87.5 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [y] | 24.4 mm |
| Size / Dimension [y] | 0.96 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.58 | |
| 5 | $ 21.42 | |||
| 10 | $ 21.25 | |||
| 25 | $ 20.92 | |||
| 50 | $ 19.92 | |||
| Tape & Reel (TR) | 150 | $ 18.26 | ||
| 300 | $ 17.93 | |||
| 450 | $ 17.66 | |||
Description
General part information
SHHD001 Series
Isolated Module DC DC Converter 1 Output 12V 1.3A 18V - 75V Input
