Technical Specifications
Parameters and characteristics for this part
| Specification | 24_SMB-50-1-10/111_NE |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 196 |
| Cable Group | RG-178 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.21 | |
| 10 | $ 18.57 | |||
| 25 | $ 17.77 | |||
| 50 | $ 17.20 | |||
| 100 | $ 16.62 | |||
| 250 | $ 15.71 | |||
| 500 | $ 15.25 | |||
Description
General part information
24_SMB-50 Series

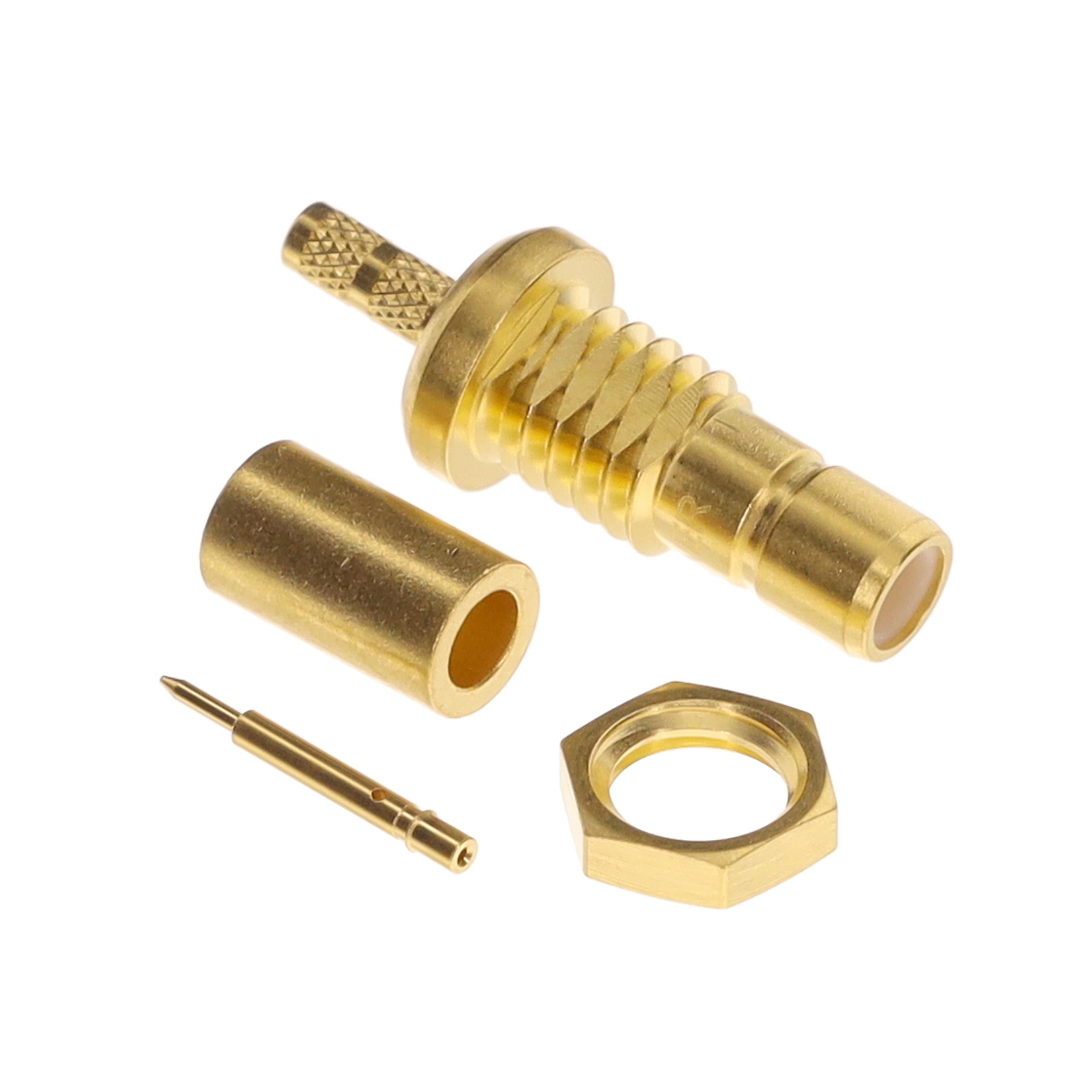

SMB Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
