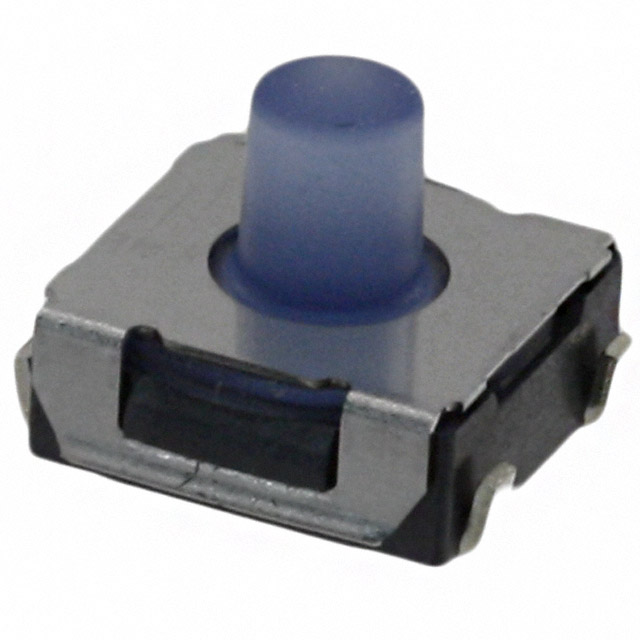

B3SL-1025P

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	B3SL-1025P

Actuator Height off PCB, Vertical [z]	5.1 mm
Actuator Material	Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Sealed - Fully
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	357 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.8 mm
Termination Style	SMD (SMT) Tab

Part	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Actuator Orientation	Contact Rating @ Voltage	Actuator Material	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Mounting Type	Features	Illumination	Switch Travel	Termination Style	Actuator Type	Mechanical Life	Switch Function	Circuit
Omron Electronics Inc-EMC Div B3SL-1025P	5.1 mm	6 mm	6 mm	Top Actuated	0.05 A 12 VDC	Rubber	357 gf	90 °C	-25 °C	IP67 - Dust Tight Waterproof	Surface Mount	Sealed - Fully	Non-Illuminated	0.8 mm	SMD (SMT) Tab	Standard	100000 Cycles	Off-Mom	SPST-NO
