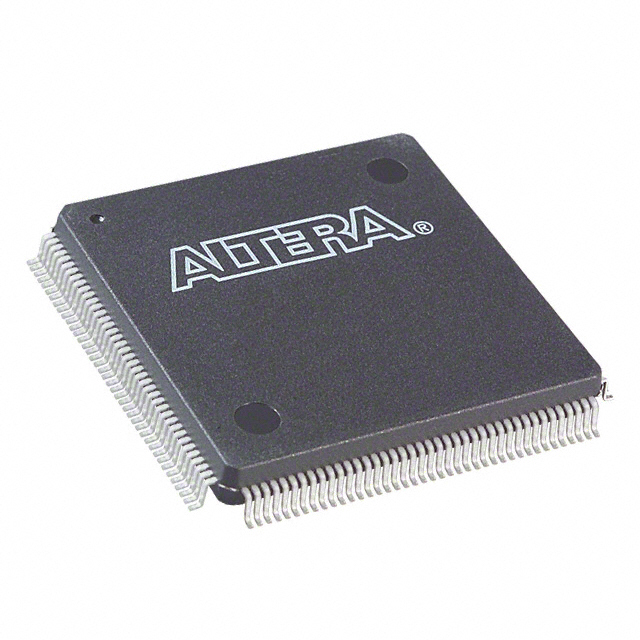

EPM7192SQC160-10N

Obsolete

Altera

IC CPLD 192MC 10NS 160QFP

Search across all available documentation for this part.

Obsolete

Altera

IC CPLD 192MC 10NS 160QFP

Technical Specifications

Parameters and characteristics for this part

Specification	EPM7192SQC160-10N

Delay Time tpd(1) Max [Max]	10 ns
Mounting Type	Surface Mount
Number of Gates	3750
Number of I/O	124
Number of Logic Elements/Blocks [custom]	12
Number of Macrocells	192
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	160-BQFP
Programmable Type	In System Programmable
Supplier Device Package	160-PQFP (28x28)
Voltage Supply - Internal [Max]	5.25 V
Voltage Supply - Internal [Min]	4.75 V

Part	Package / Case	Number of Gates	Programmable Type	Number of Macrocells	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of Logic Elements/Blocks [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Delay Time tpd(1) Max [Max]	Number of I/O	Mounting Type
Altera EPM7192EGC160-12	160-BPGA	3750	EE PLD	192	4.75 V	5.25 V	12	160-PGA (39.62x39.62)	70 °C	0 °C	12 ns	124	Through Hole
Altera EPM7192EQC160-12	160-BQFP	3750	EE PLD	192	4.75 V	5.25 V	12	160-PQFP (28x28)	70 °C	0 °C	12 ns	124	Surface Mount
Altera EPM7192EQI160-20	160-BQFP	3750	EE PLD	192	4.5 V	5.5 V	12	160-PQFP (28x28)	85 °C	-40 °C	20 ns	124	Surface Mount
Altera EPM7192EGC160-15	160-BPGA	3750	EE PLD	192	4.75 V	5.25 V	12	160-PGA (39.62x39.62)	70 °C	0 °C	15 ns	124	Through Hole
Altera EPM7192EQC160-20	160-BQFP	3750	EE PLD	192	4.75 V	5.25 V	12	160-PQFP (28x28)	70 °C	0 °C	20 ns	124	Surface Mount
Altera EPM7192SQC160-10N	160-BQFP	3750	In System Programmable	192	4.75 V	5.25 V	12	160-PQFP (28x28)	70 °C	0 °C	10 ns	124	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC CPLD 192MC 10NS 160QFP

Technical documentation and resources
