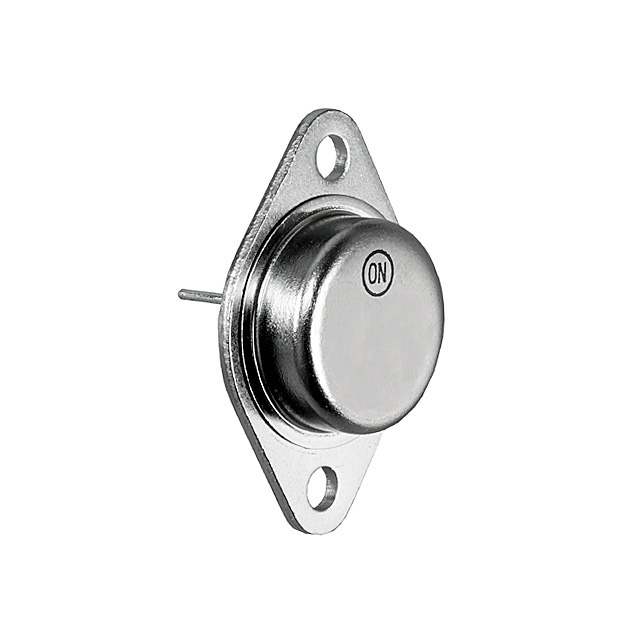

2N3055AG

Active

ON Semiconductor

15 A, 60 V NPN BIPOLAR POWER TRANSISTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPackage Drawing-1-07-TO-204 (TO-3)Datasheet +1

2N3055AG

Active

ON Semiconductor

15 A, 60 V NPN BIPOLAR POWER TRANSISTOR

Deep-Dive with AI

DocumentsPackage Drawing-1-07-TO-204 (TO-3)Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2N3055AG

Current - Collector (Ic) (Max) [Max]	15 A
DC Current Gain (hFE) (Min) @ Ic, Vce	10 hFE
Frequency - Transition	6 MHz
Mounting Type	Through Hole
Package / Case	TO-3, TO-204AA
Power - Max [Max]	115 W
Supplier Device Package	TO-204
Supplier Device Package	TO-3
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	5 V
Voltage - Collector Emitter Breakdown (Max)	60 V

2N3055H Series

15 A, 60 V NPN Bipolar Power Transistor

Part	Frequency - Transition	Package / Case	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Transistor Type	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max)	DC Current Gain (hFE) (Min) @ Ic, Vce
ON Semiconductor 2N3055HG	2.5 MHz	TO-204AA TO-3	Through Hole	3 V	115 W	NPN	15 A	TO-204	TO-3	20	60 V
ON Semiconductor 2N3055G	2.5 MHz	TO-204AA TO-3	Through Hole	3 V	115 W	NPN	15 A	TO-204	TO-3	20	60 V
ON Semiconductor 2N3055AG	6 MHz	TO-204AA TO-3	Through Hole	5 V	115 W	NPN	15 A	TO-204	TO-3		60 V	10 hFE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.46
		10	$ 5.42
		25	$ 5.12
		100	$ 4.39
		300	$ 4.14
		500	$ 3.90
		1000	$ 3.34
		2400	$ 3.14
ON Semiconductor	N/A	1	$ 3.22

Description

General part information

2N3055H Series

The Bipolar Power Transistor is designed for high power audio, stepping motor and other linear applications. It can also be used in power switching circuits such as relay or solenoid drivers, dc-to-dc converters, inverters or for inductive loads requiring higher safe operating area than the 2N3055.
