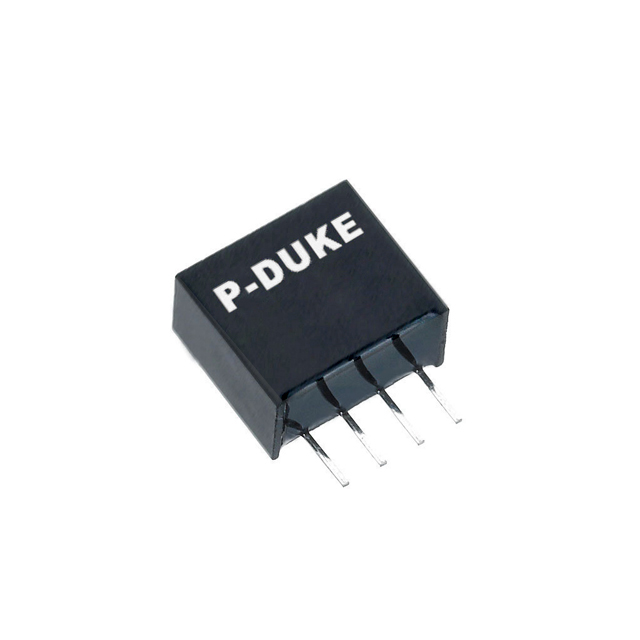

EUR01-12S12
ActiveP-DUKE Technology
DC-DC CONVERTER - 1W - VOUT: 12 VDC - VIN: 10.8 TO 13.2 VDC - PCB MOUNT - 1.6KV ISOLATION
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EUR01-12S12
ActiveP-DUKE Technology
DC-DC CONVERTER - 1W - VOUT: 12 VDC - VIN: 10.8 TO 13.2 VDC - PCB MOUNT - 1.6KV ISOLATION
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EUR01-12S12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 83 mA |
| Efficiency | 76 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SIP Module |
| Power (Watts) | 996 mW |
| Size / Dimension [x] | 11.5 mm |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 10 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.91 | |
| 10 | $ 5.20 | |||
| 25 | $ 4.94 | |||
| 50 | $ 4.75 | |||
| 100 | $ 4.57 | |||
| 250 | $ 4.34 | |||
| 500 | $ 4.17 | |||
| 1000 | $ 4.02 | |||
Description
General part information
EUR01 Series
Isolated Module DC DC Converter 1 Output 12V 83mA 10.8V - 13.2V Input
