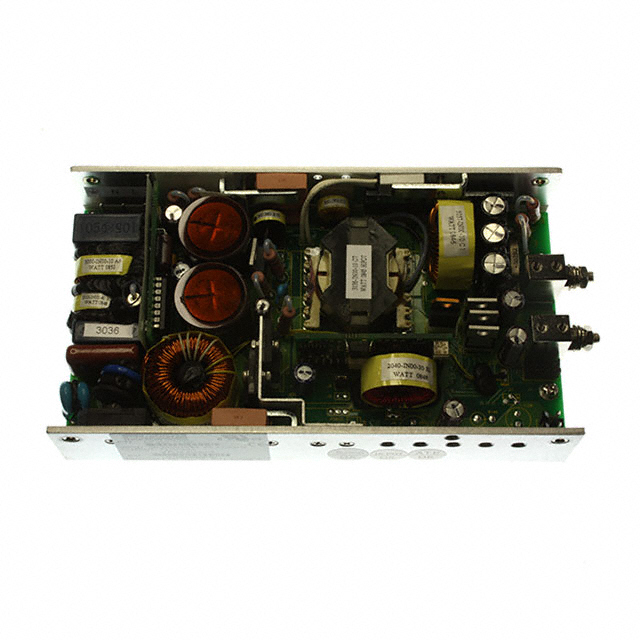

CF350-A12C

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 350W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 350W

Technical Specifications

Parameters and characteristics for this part

Specification	CF350-A12C

Applications	ITE (Commercial)
Approval Agency	cUR, CE
Current - Output 1	29 A
Efficiency	87 %
Features	Universal Input, PFC, Remote Sense, Load Sharing, Adjustable Output, Hot Swappable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-5 °C
Power (Watts)	350 W
Size / Dimension [x]	172.7 mm
Size / Dimension [x]	6.8 "
Size / Dimension [y]	98 mm
Size / Dimension [y]	3.86 in
Size / Dimension [z]	1.4 "
Size / Dimension [z]	35.6 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Current - Output 1	Approval Agency	Efficiency	Features	Voltage - Isolation	Mounting Type	Number of Outputs	Power (Watts)	Voltage - Output 1	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. CF350-A24C	14.5 A	CE cUR	87 %	Adjustable Output Hot Swappable Load Sharing PFC Remote Sense Universal Input	3000 V	Chassis Mount	1	350 W	24 V	ITE (Commercial)	Open Frame	-5 °C	70 °C	172.7 mm	6.8 "	98 mm	1.4 "	3.86 in	35.6 mm
Murata Power Solutions Inc. CF350-A12C	29 A	CE cUR	87 %	Adjustable Output Hot Swappable Load Sharing PFC Remote Sense Universal Input	3000 V	Chassis Mount	1	350 W	12 V	ITE (Commercial)	Open Frame	-5 °C	70 °C	172.7 mm	6.8 "	98 mm	1.4 "	3.86 in	35.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
