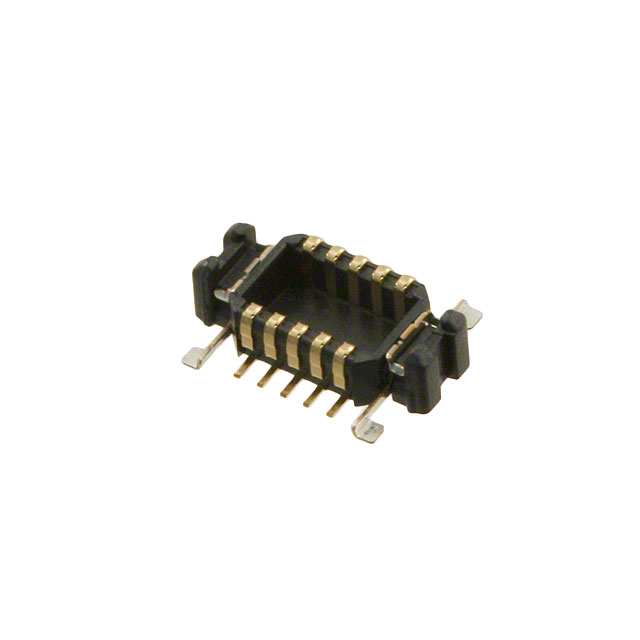

AA01A-P010VA1
ObsoleteJAE Electronics
CONN PLUG 10POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AA01A-P010VA1
ObsoleteJAE Electronics
CONN PLUG 10POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AA01A-P010VA1 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.056 in |
| Height Above Board [z] | 1.42 mm |
| Mated Stacking Heights | 1.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AA01A-P Series
10 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
