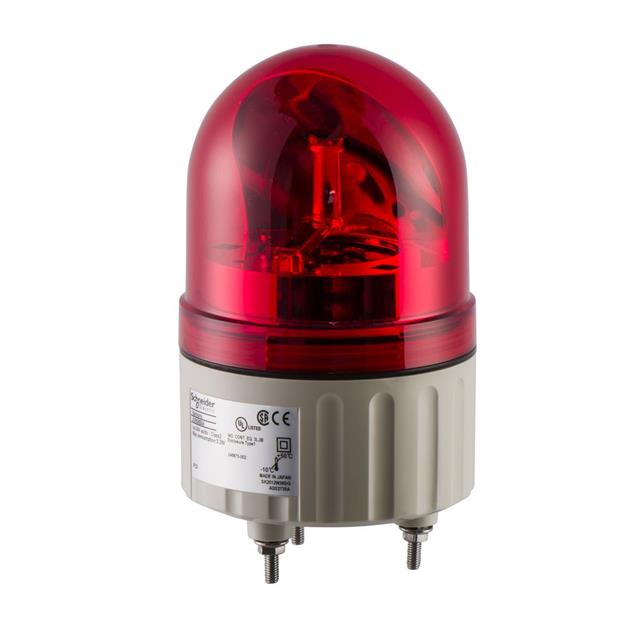

XVR08J04

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT RED LED ROTATING

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

COMPLETE UNIT RED LED ROTATING

Technical Specifications

Parameters and characteristics for this part

Specification	XVR08J04

Function - Lighting	Rotating
Ingress Protection	IP23
Light Color	Red
Number of Stacks	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Cable Leads
Type	Complete Unit
Voltage - Supply	12 VAC

Part	Voltage - Supply	Type	Ingress Protection	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Number of Stacks	Termination Style	Light Color	Function - Lighting	Weight	Weight
SQUARE D BY SCHNEIDER ELECTRIC XVR08B05	24 VAC	Complete Unit	IP23	-10 °C	50 °C	1	Cable Leads	Orange	Rotating
SQUARE D BY SCHNEIDER ELECTRIC XVR08B06	24 VAC	Complete Unit	IP23	-10 °C	50 °C	1	Cable Leads		Rotating	303.91 g	0.67 lb
SQUARE D BY SCHNEIDER ELECTRIC XVR08J04	12 VAC	Complete Unit	IP23	-10 °C	50 °C	1	Cable Leads	Red	Rotating

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 208.86

General part information

Stack Light Complete Unit Red LED Cable Leads
