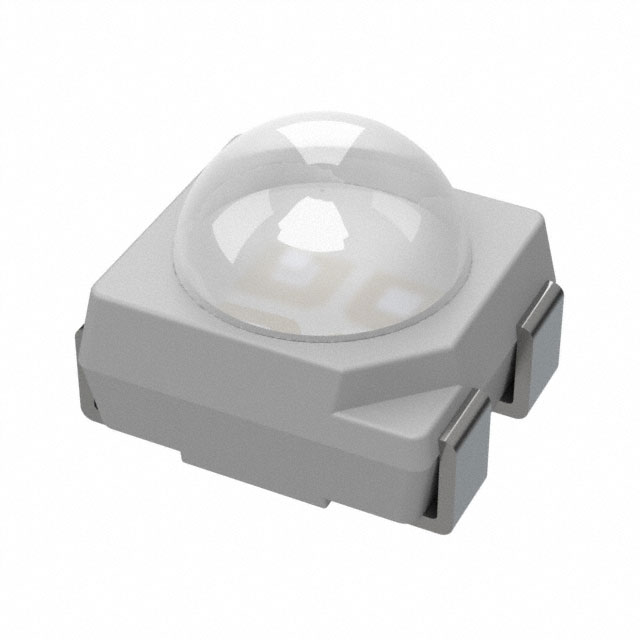

LY E65F-DAEA-35-3B5A-50-R33-Z
Activeams-OSRAM USA INC.
LED YELLOW CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LY E65F-DAEA-35-3B5A-50-R33-Z
Activeams-OSRAM USA INC.
LED YELLOW CLEAR 4PLCC SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LY E65F-DAEA-35-3B5A-50-R33-Z |
|---|---|
| Color | Yellow |
| Current - Test | 50 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.55 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 67500 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.3 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 597 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 8000 | $ 0.13 | |
Description
General part information
LY E65F Series
Yellow 590nm LED Indication - Discrete 2.15V 4-PLCC
