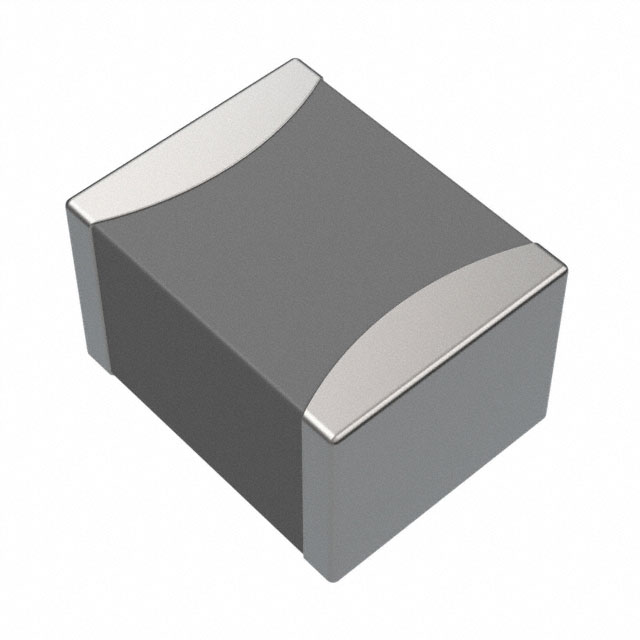

DFE322512F-4R7M=P2
ActiveMurata Power Solutions Inc.
FIXED IND 4.7UH 1.6A 157MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DFE322512F-4R7M=P2
ActiveMurata Power Solutions Inc.
FIXED IND 4.7UH 1.6A 157MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DFE322512F-4R7M=P2 |
|---|---|
| Current - Saturation (Isat) | 2.3 A |
| Current Rating (Amps) | 1.6 A |
| DC Resistance (DCR) [Max] | 157 mOhm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Shielding | Shielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 1210 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.47 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.33 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 3000 | $ 0.24 | ||
| 6000 | $ 0.23 | |||
| 15000 | $ 0.23 | |||
| 30000 | $ 0.22 | |||
Description
General part information
DFE322512F Series
4.7 µH Shielded Drum Core, Wirewound Inductor 1.6 A 157mOhm Max 1210 (3225 Metric)
