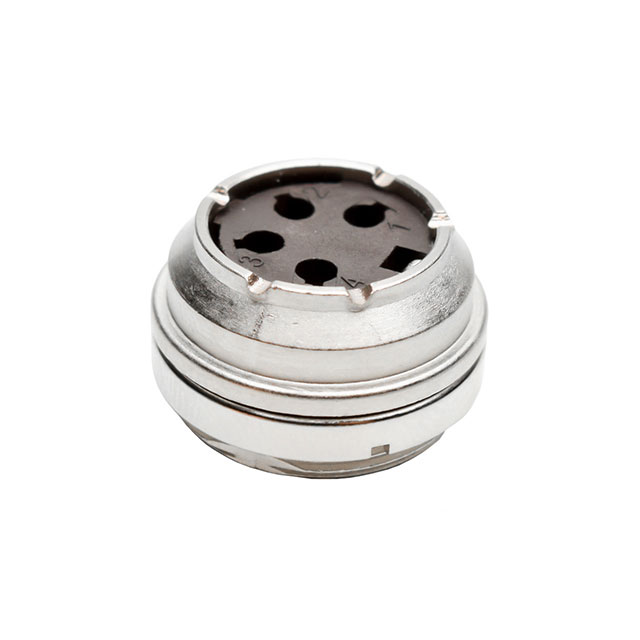

C091 11G004 000 2

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 4POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 4POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11G004 000 2

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-4
Shielding	Shielded
Type	For Female Sockets

Part	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Material Flammability Rating	Type	Housing Color	Shell Size - Insert	Shell Finish	Orientation	Connector Type	Shielding	Number of Positions	Contact Size	Shell Material	Contact Type	Note	Ingress Protection	Insert Material
Amphenol Tuchel Industrial C091 11G004 000 2	Bulkhead - Front Side Nut	100 °C	-40 °C	Circular	UL94 V-0	For Female Sockets	Silver	M16-4	Nickel	Keyed	Receptacle Housing	Shielded	4	1.5 mm	Die Cast	Crimp	Contacts Not Included	IP65 IP67 IP69K	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.07

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
