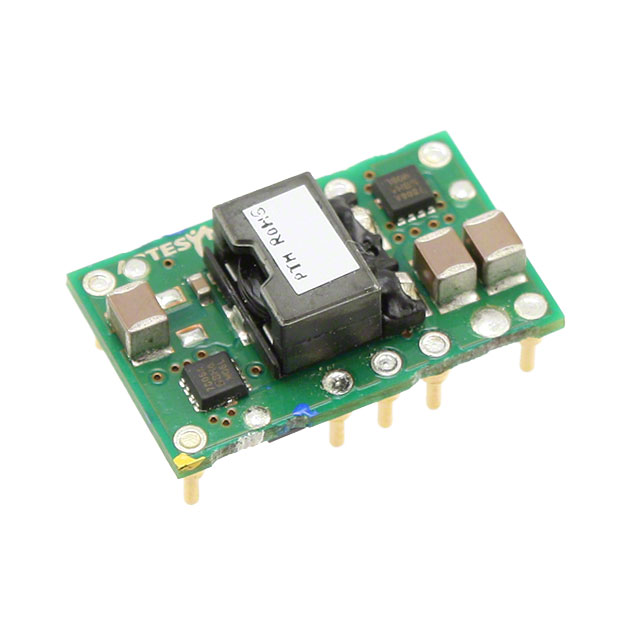

PTH03060WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 0.8-2.5V 25W
Deep-Dive with AI
Search across all available documentation for this part.
PTH03060WAD
ObsoleteARTESYN / Advanced Energy
DC DC CONVERTER 0.8-2.5V 25W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH03060WAD |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 93 % |
| Features | UVLO, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-DIP Module |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 0.62 " |
| Size / Dimension [y] | 15.7 mm |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 8.9 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 3.65 V |
| Voltage - Input (Min) [Min] | 2.95 V |
| Voltage - Output 1 [Max] | 2.5 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 72 | $ 15.50 | |
Description
General part information
PTH03060 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 10A 2.95V - 3.65V Input
Documents
Technical documentation and resources
No documents available
