903-NM291P-51A

Active

Amphenol RF

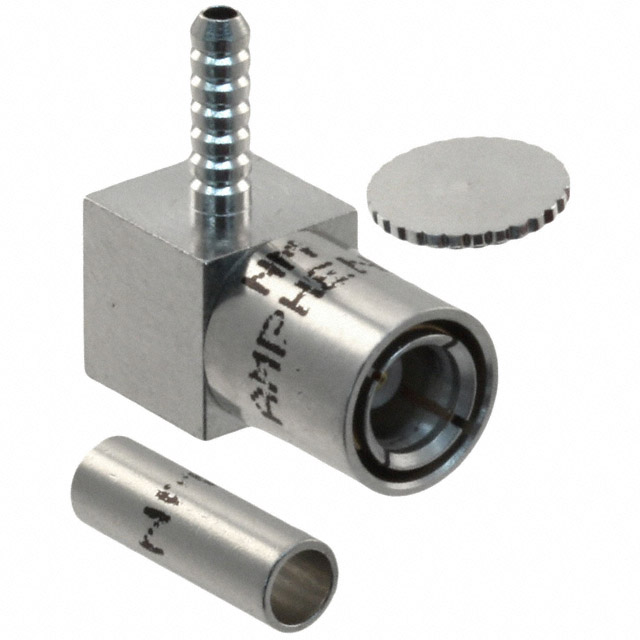

CONN SMB PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-NM291P-51A

Body Finish	White Bronze
Body Material	Beryllium Copper
Cable Group	178B, RG-178, 196A, M17/93-RG178, 196, 178A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Non-Magnetic
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Body Finish	Insertion Loss	Contact Termination	Mating Cycles	Number of Ports	Center Contact Material	Shield Termination	Center Contact Plating	Impedance	Dielectric Material	Frequency - Max [Max]	Mounting Type	Features	Body Material	Connector Style	Housing Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Includes	Cable Group
Amphenol RF 903-NM289P-51A	White Bronze	0.6 dB	Solder	500	1	Beryllium Copper	Crimp	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	4 GHz	Free Hanging (In-Line) Right Angle	Non-Magnetic	Beryllium Copper	SMB	Silver	Female Socket Plug	-40 °C	155 °C	Snap-On	1 Connector 1 End Cap 1 Ferrule	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 903-NM291P-51A	White Bronze	0.6 dB	Solder	500	1	Beryllium Copper	Crimp	Gold	50 Ohms	Polytetrafluoroethylene (PTFE)	4 GHz	Free Hanging (In-Line) Right Angle	Non-Magnetic	Beryllium Copper	SMB	Silver	Female Socket Plug	-40 °C	155 °C	Snap-On	1 Connector 1 End Cap 1 Ferrule	178A 178B 196 196A M17/93-RG178 RG-178

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
