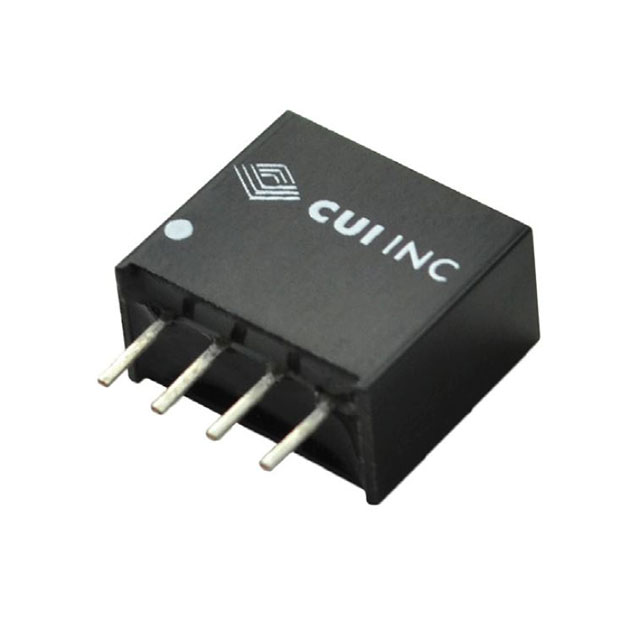

PCSA1-S12-S15-S

Active

CUI Inc.

DC DC CONVERTER 15V 1W

Search across all available documentation for this part.

Active

CUI Inc.

DC DC CONVERTER 15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Applications	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Voltage - Isolation	Voltage - Output 1	Type	Voltage - Input (Max) [Max]
CUI Inc. PCSA1-S5-S15-S	SCP	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	ITE (Commercial)	67 mA	100 °C	-40 °C	1	80 %	Through Hole	4.5 V	4-SIP Module	1000 V	15 V	Isolated Module	5.5 V
CUI Inc. PCSA1-S5-S5-S	SCP	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	ITE (Commercial)	200 mA	100 °C	-40 °C	1	79 %	Through Hole	4.5 V	4-SIP Module	1000 V	5 V	Isolated Module	5.5 V
CUI Inc. PCSA1-S24-S15-S	SCP	0.4 "	11.6 mm	0.46 in	10.2 mm	7.5 mm	0.3 "	ITE (Commercial)	67 mA	100 °C	-40 °C	1	81 %	Through Hole	21.6 V	4-SIP Module	1000 V	15 V	Isolated Module	26.4 V
CUI Inc. PCSA1-S12-S15-S	SCP	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	ITE (Commercial)	67 mA	100 °C	-40 °C	1		Through Hole	10.8 V	4-SIP Module	1000 V	15 V	Isolated Module	13.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 67mA 10.8V - 13.2V Input

Technical documentation and resources

No documents available
