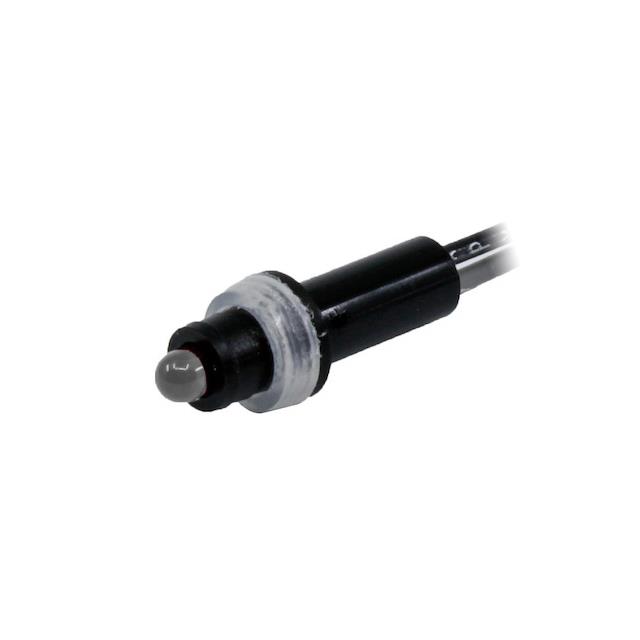

L4-1-8310-0000-A-I

Active

Visual Communications Company - VCC

PMI DIA .187" (4.7MM) BLUE 2V

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMI DIA .187" (4.7MM) BLUE 2V

Technical Specifications

Parameters and characteristics for this part

Specification	L4-1-8310-0000-A-I

Lamp Color	Blue
Lens Color	Blue
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Millicandela Rating	1100 mcd
Panel Cutout Dimensions [custom]	4.83 mm
Panel Cutout Dimensions [custom]	0.19 "
Panel Cutout Shape	Round
Termination Style	Wire Leads - 6.000" (152.40mm)
Type	LED
Viewing Angle	30 °
Voltage	3.3 V
Wavelength - Peak	468 nm

Part	Termination Style	Lens Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Shape	Millicandela Rating	Lamp Color	Viewing Angle	Wavelength - Peak	Type	Lens Size	Lens Size	Lens Style	Voltage
Visual Communications Company - VCC L4-1-8310-9910-A-I	Wire Leads - 6.000" (152.40mm)	Blue	4.83 mm	0.19 "	Round	1100 mcd	Blue	30 °	468 nm	LED	3 mm	T-1	Round with Domed Top	3.3 V
Visual Communications Company - VCC L4-1-8310-9908-A-I	Wire Leads - 6.000" (152.40mm)	Blue	4.83 mm	0.19 "	Round	1100 mcd	Blue	30 °	468 nm	LED	3 mm	T-1	Round with Domed Top	3.3 V
Visual Communications Company - VCC L4-1-8310-9912-A-I	Wire Leads - 6.000" (152.40mm)	Blue	4.83 mm	0.19 "	Round	1100 mcd	Blue	30 °	468 nm	LED	3 mm	T-1	Round with Domed Top	3.3 V
Visual Communications Company - VCC L4-1-8310-0000-A-I	Wire Leads - 6.000" (152.40mm)	Blue	4.83 mm	0.19 "	Round	1100 mcd	Blue	30 °	468 nm	LED	3 mm	T-1	Round with Domed Top	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 4.69

General part information

LED Panel Indicator Blue 30° 3.3V 20mA Wire Leads - 6.000" (152.40mm)

Technical documentation and resources

No documents available
