29K501-500L5

Obsolete

Rosenberger

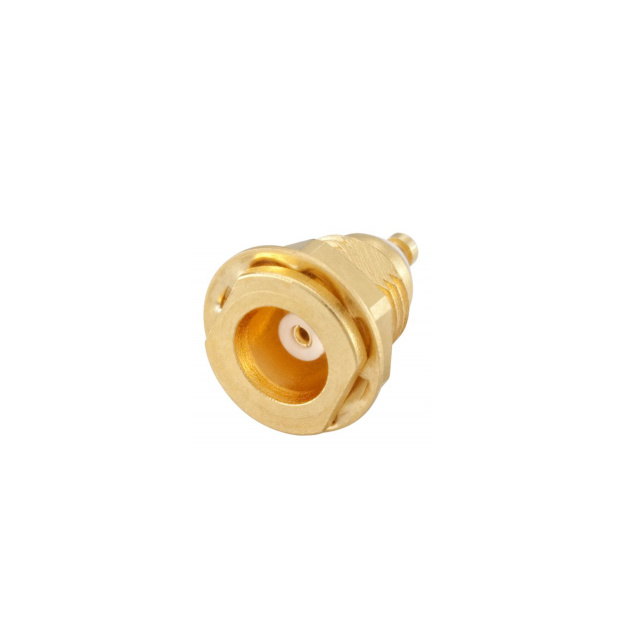

MCX BULKHEAD JACK

Search across all available documentation for this part.

Obsolete

Rosenberger

MCX BULKHEAD JACK

Technical Specifications

Parameters and characteristics for this part

Specification	29K501-500L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

Part	Impedance	Connector Style	Mounting Feature	Body Material	Shield Termination	Center Contact Material	Housing Color	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Voltage Rating	Center Contact Plating	Dielectric Material	Frequency - Max [Max]	Fastening Type	Number of Ports	Contact Termination	Body Finish
Rosenberger 29K501-500L5	50 Ohms	MCX	Bulkhead	Brass	Solder	Beryllium Copper	Gold	500	155 °C	-55 °C	Female Socket Jack	335 V	Gold	Polytetrafluoroethylene (PTFE)	6000 MHz	Snap-On	1	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MCX Connector Jack, Female Socket 50 Ohms Panel Mount Solder
