BSH-120-01-H-D-A

Active

Samtec Inc.

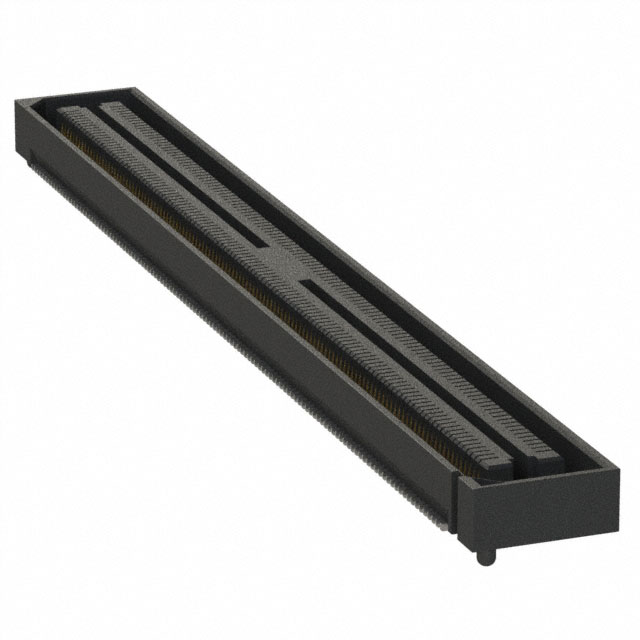

CONN SOCKET 240POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 240POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BSH-120-01-H-D-A

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	240
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mounting Type	Height Above Board	Height Above Board	Number of Positions	Pitch [x]	Pitch [x]	Mated Stacking Heights	Features
Samtec Inc. BSH-120-01-L-D-LC	Socket Center Strip Contacts	2	10 Áin	0.25 Ám	Gold	Surface Mount	3.25 mm	0.128 in	240	0.5 mm	0.02 in	5 mm
Samtec Inc. BSH-120-01-L-D-A	Socket Center Strip Contacts	2	10 Áin	0.25 Ám	Gold	Surface Mount	3.25 mm	0.128 in	240	0.5 mm	0.02 in	5 mm	Board Guide
Samtec Inc. BSH-120-01-L-D-EM2	Socket Center Strip Contacts	2	10 Áin	0.25 Ám	Gold	Board Edge Straddle Mount			240	0.5 mm	0.02 in
Samtec Inc. BSH-120-01-L-D	Socket Center Strip Contacts	2	10 Áin	0.25 Ám	Gold	Surface Mount	3.25 mm	0.128 in	240	0.5 mm	0.02 in	5 mm
Samtec Inc. BSH-120-01-F-D-A	Socket Center Strip Contacts	2	3 Áin	0.076 Ám	Gold	Surface Mount	3.25 mm	0.128 in	240	0.5 mm	0.02 in	5 mm	Board Guide
Samtec Inc. BSH-120-01-H-D-A	Socket Center Strip Contacts	2	30 Áin	0.76 Ám	Gold	Surface Mount	3.25 mm	0.128 in	240	0.5 mm	0.02 in	5 mm	Board Guide
Samtec Inc. BSH-120-01-H-D-LC	Socket Center Strip Contacts	2	30 Áin	0.76 Ám	Gold	Surface Mount	3.25 mm	0.128 in	240	0.5 mm	0.02 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	45	$ 21.01

General part information

240 Position Connector Socket, Center Strip Contacts Surface Mount Gold
