Q-3C013000R036I

Active

Amphenol Custom Cable

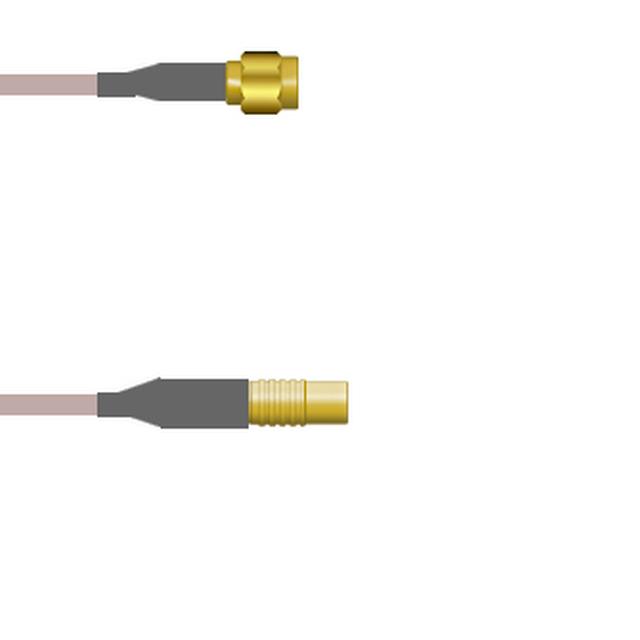

CBL ASSY SMA-MCX PLUG-SCKT 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3C013000R036I

Active

Amphenol Custom Cable

CBL ASSY SMA-MCX PLUG-SCKT 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3C013000R036I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Socket
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316 DS
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMA to MCX

Q-3C0130 Series

Part	Features	1st Connector	Frequency - Max [Max]	Cable Impedance	2nd Connector Mounting Type	Style	Connector Impedance	2nd Contact Gender	Cable Type	Overall Impedance	1st Connector Mounting Type	Length	Length	1st Contact Gender	Color	2nd Connector	Length
Amphenol Custom Cable Q-3C013000R0.5M	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	50 cm	19.69 "	Male	Copper	MCX Socket
Amphenol Custom Cable Q-3C013000R001M	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	1 m	39.4 in	Male	Copper	MCX Socket	3.3 ft
Amphenol Custom Cable Q-3C013000R.75M	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	750 mm	29.53 "	Male	Copper	MCX Socket
Amphenol Custom Cable Q-3C013000R003I	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	76.2 mm	3 in	Male	Copper	MCX Socket
Amphenol Custom Cable Q-3C013000R002M	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	2 m	78.7 in	Male	Copper	MCX Socket	6.6 ft
Amphenol Custom Cable Q-3C013000R003M	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	3 m	118.1 in	Male	Copper	MCX Socket	9.8 '
Amphenol Custom Cable Q-3C013000R012I	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	304.8 mm	12 "	Male	Copper	MCX Socket
Amphenol Custom Cable Q-3C013000R036I	Shielded	SMA Plug	3 GHz	50 Ohms	Free Hanging (In-Line)	SMA to MCX	50 Ohms	Female	RG-316 DS	50 Ohms	Free Hanging (In-Line)	91.44 cm	36 in	Male	Copper	MCX Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 162.85
		25	$ 159.64
		50	$ 156.43
		100	$ 153.22
		250	$ 150.00

Description

General part information

Q-3C0130 Series

Cable Assembly Coaxial SMA to MCX RG-316 DS 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
