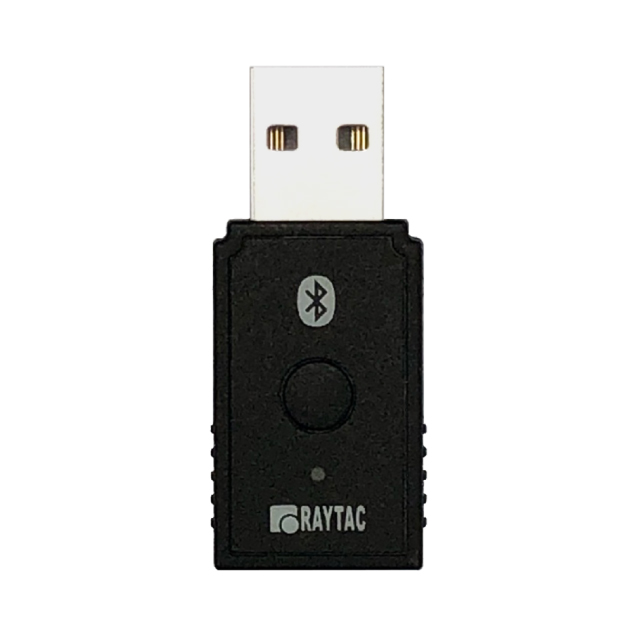

MDBT50Q-RX
ActiveRaytac
NORDIC NRF52840 USB DONGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDBT50Q-RX |
|---|---|
| Applications | General Purpose |
| Data Rate (Max) | 2 Mbps |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 2.36 GHz |
| Function | Transceiver, 802.15.4, Bluetooth |
| Interface | USB, GPIO, PWM |
| Modulation or Protocol | 802.15.4 Zigbee, Bluetooth v5.4 |
| Power - Output | 8 dBm |
| Sensitivity | -103 dBm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.80 | |
| 20 | $ 9.60 | |||
| 50 | $ 9.40 | |||
| 100 | $ 9.30 | |||
Description
General part information
MDBT50Q Series
RF Transceiver, 802.15.4, Bluetooth 2.36GHz ~ 2.5GHz 802.15.4 Zigbee, Bluetooth v5.4 GPIO, PWM, USB 2Mbps
