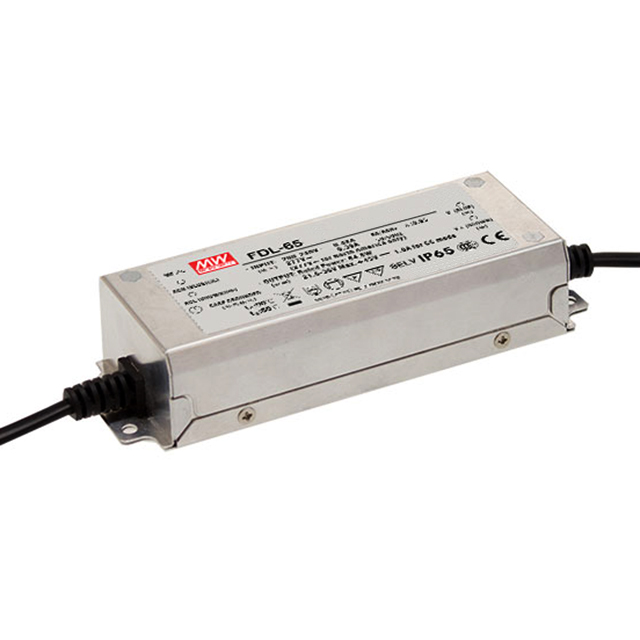

FDL-65-1800
ObsoleteMEAN WELL USA Inc.
LED DRVR CC AC/DC 21.6-36V 1.8A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FDL-65-1800
ObsoleteMEAN WELL USA Inc.
LED DRVR CC AC/DC 21.6-36V 1.8A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FDL-65-1800 |
|---|---|
| Current - Output (Max) [Max] | 1.8 A |
| Efficiency | 90 % |
| Features | OTP, OVP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 65 W |
| Ratings | IP65 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 36 V |
| Voltage - Output [Min] | 21.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.00 | |
Description
General part information
FDL-65 Series
1.8A 21.6 ~ 36V Constant Current LED Driver AC DC Converter Topology 1 Output
