567-45AB

Active

Wakefield-Vette

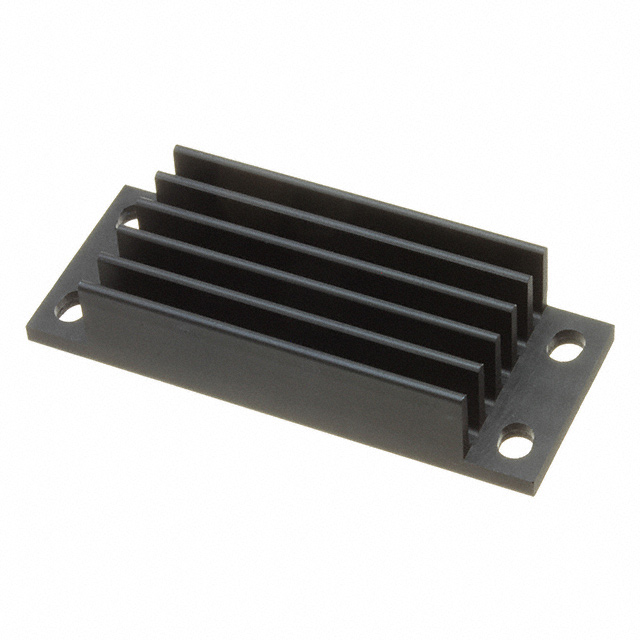

1/8 BRICK HEATSINK 55X20.7X11.4M

Search across all available documentation for this part.

Active

Wakefield-Vette

1/8 BRICK HEATSINK 55X20.7X11.4M

Technical Specifications

Parameters and characteristics for this part

Specification	567-45AB

Attachment Method	Thermal Material, Bolt On
Fin Height [z]	0.449 in
Fin Height [z]	11.4 mm
Length [x]	55 mm
Length [x]	2.165 in
Material Finish	Unfinished
Package Cooled	Eighth Brick DC/DC Converter
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	300 LFM, 4.3 °C/W
Thermal Resistance @ Natural	4.3 °C/W
Type	Top Mount
Width [x]	0.815 in
Width [x]	20.7 mm

Part	Material Finish	Fin Height [z]	Fin Height [z]	Length [x]	Length [x]	Type	Thermal Resistance @ Natural	Shape	Package Cooled	Width [x]	Width [x]	Attachment Method	Thermal Resistance @ Forced Air Flow
Wakefield-Vette 567-45AB	Unfinished	0.449 in	11.4 mm	55 mm	2.165 in	Top Mount	4.3 °C/W	Rectangular Fins	Eighth Brick DC/DC Converter	0.815 in	20.7 mm	Bolt On Thermal Material	4.3 °C/W 300 LFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink Eighth Brick DC/DC Converter Top Mount
