HST-24-WT-4

Active

Adam Tech

HEAT SHRINK 22MM DIA WHITE 4' 2:

Search across all available documentation for this part.

Active

Adam Tech

HEAT SHRINK 22MM DIA WHITE 4' 2:

Technical Specifications

Parameters and characteristics for this part

Specification	HST-24-WT-4

Color	White
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	11 mm
Inner Diameter - Recovered [diameter]	0.433 "
Inner Diameter - Supplied [diameter]	23 mm
Inner Diameter - Supplied [diameter]	0.906 "
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Color	Type	Material	Recovered Wall Thickness	Recovered Wall Thickness	Features	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech HST-24-WT-4	23 mm	0.906 "	2 to 1	11 mm	0.433 "	1.22 m	4 ft	White	Tubing Flexible	Polyolefin (PO)	0.76 mm	0.03 "	Flame Retardant	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

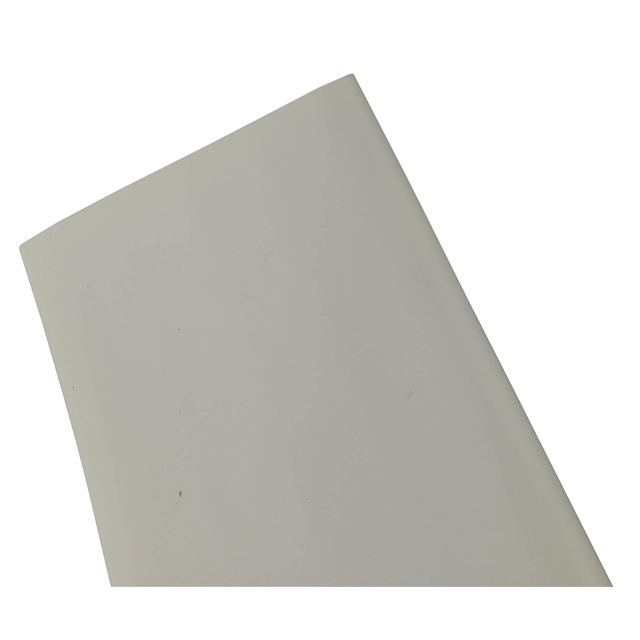

Heat Shrink Tubing, Flexible 0.906" (23.00mm) 2 to 1 White 4.00' (1.22m)
