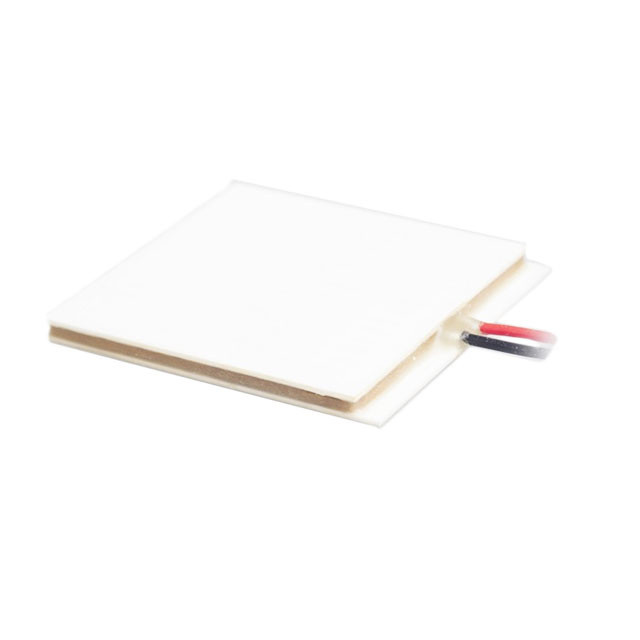

ETH-288-10-13-E-H1
ActiveEuropean Thermodynamics Ltd
TE MODULE,288 COUPLES,H1,EP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ETH-288-10-13-E-H1 |
|---|---|
| Current - Max [Max] | 14.6 A |
| Delta Tmax @ Th | 72 °C |
| Height [z] | 3.2 mm |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [y] | 50 mm |
| Voltage - Max [Max] | 37.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 109.92 | |
| 5 | $ 103.32 | |||
| 10 | $ 100.59 | |||
| 25 | $ 97.10 | |||
| 50 | $ 94.55 | |||
| 100 | $ 92.05 | |||
Description
General part information
ETH-288 Series
Peltier Module 14.6 A
