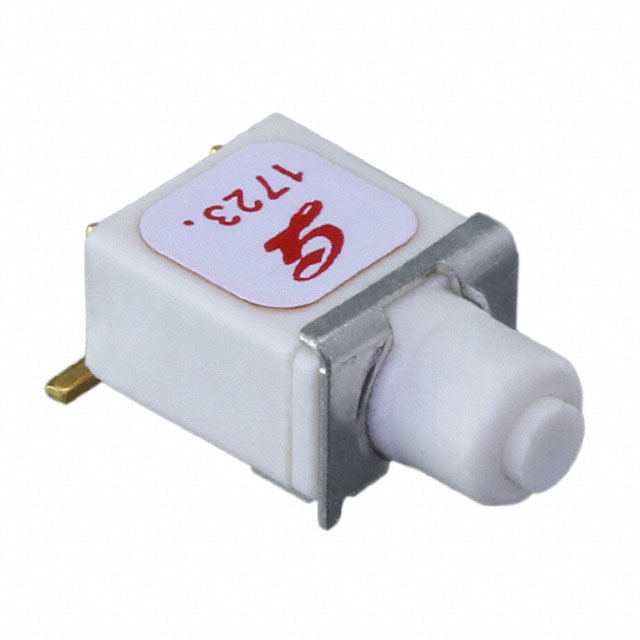

38BM-0-H-3-S
ActiveGrayhill Inc.
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
38BM-0-H-3-S
ActiveGrayhill Inc.
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 38BM-0-H-3-S |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger, Round, Flush |
| Circuit | SPST-NO |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 80000 Cycles |
| Features | Sealed - Fully |
| Mechanical Life | 80000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | Gull Wing |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.33 | |
| 10 | $ 7.53 | |||
| 25 | $ 7.17 | |||
| 50 | $ 7.09 | |||
Description
General part information
38BM-0 Series
Pushbutton Switch SPST-NO Standard Surface Mount, Right Angle
