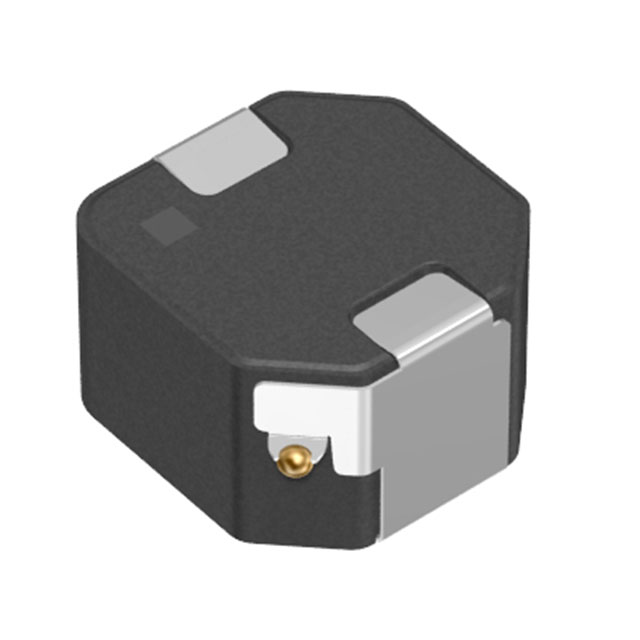

SPM6545VT-470M-D

Active

EPCOS - TDK Electronics

GENERAL PURPOSE INDUCTOR, 47UH, 20%, 1 ELEMENT, METAL COMPOSITE-CORE, SMD, 2826, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPM6545VT-470M-D

Active

EPCOS - TDK Electronics

GENERAL PURPOSE INDUCTOR, 47UH, 20%, 1 ELEMENT, METAL COMPOSITE-CORE, SMD, 2826, CHIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPM6545VT-470M-D

Current - Saturation (Isat)	3 A
Current Rating (Amps)	2.1 A
DC Resistance (DCR)	229 mOhm
Height - Seated (Max)	4.5 mm
Height - Seated (Max) [Max]	0.177 "
Inductance	47 µH
Inductance Frequency - Test	100 kHz
Material - Core	Metal Composite
Mounting Type	Surface Mount
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	6.5 mm
Size / Dimension [y]	0.256 in
Supplier Device Package	6545
Tolerance	20 %
Type	Wirewound, Drum Core

SPM6545VT Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Current - Saturation (Isat)	Current Rating (Amps)	Type	Package / Case	DC Resistance (DCR)	Shielding	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Ratings	Tolerance	Inductance Frequency - Test	Supplier Device Package	Material - Core	Mounting Type
EPCOS - TDK Electronics SPM6545VT-680M-D	0.177 "	4.5 mm	2.9 A	1.7 A	Drum Core Wirewound	Nonstandard	340 mOhm	Shielded	68 µH	155 °C	-55 °C	6.5 mm	0.256 in	0.276 "	7 mm	AEC-Q200	20 %	100 kHz	6545	Metal Composite	Surface Mount
EPCOS - TDK Electronics SPM6545VT-330M-D	0.177 "	4.5 mm	3.2 A	2.7 A	Drum Core Wirewound	Nonstandard	132 mOhm	Shielded	33 µH	155 °C	-55 °C	6.5 mm	0.256 in	0.276 "	7 mm	AEC-Q200	20 %	100 kHz	6545	Metal Composite	Surface Mount
EPCOS - TDK Electronics SPM6545VT-2R2M-D	0.177 "	4.5 mm	14.3 A	9.8 A	Drum Core Wirewound	Nonstandard	10.4 mOhm	Shielded	2.2 µH	155 °C	-55 °C	6.5 mm	0.256 in	0.276 "	7 mm	AEC-Q200	20 %	100 kHz	6545	Metal Composite	Surface Mount
EPCOS - TDK Electronics SPM6545VT-6R8M-D	0.177 "	4.5 mm	8.6 A	5.2 A	Drum Core Wirewound	Nonstandard	36 mOhm	Shielded	6.8 µH	155 °C	-55 °C	6.5 mm	0.256 in	0.276 "	7 mm	AEC-Q200	20 %	100 kHz	6545	Metal Composite	Surface Mount
EPCOS - TDK Electronics SPM6545VT-100M-D	0.177 "	4.5 mm	7.1 A	4.3 A	Drum Core Wirewound	Nonstandard	52.3 mOhm	Shielded	10 µH	155 °C	-55 °C	6.5 mm	0.256 in	0.276 "	7 mm	AEC-Q200	20 %	100 kHz	6545	Metal Composite	Surface Mount
EPCOS - TDK Electronics SPM6545VT-1R0M-D	0.177 "	4.5 mm	17.9 A	13.3 A	Drum Core Wirewound	Nonstandard	5.6 mOhm	Shielded	1 µH	155 °C	-55 °C	6.5 mm	0.256 in	0.276 "	7 mm	AEC-Q200	20 %	100 kHz	6545	Metal Composite	Surface Mount
EPCOS - TDK Electronics SPM6545VT-470M-D	0.177 "	4.5 mm	3 A	2.1 A	Drum Core Wirewound	Nonstandard	229 mOhm	Shielded	47 µH	155 °C	-55 °C	6.5 mm	0.256 in	0.276 "	7 mm	AEC-Q200	20 %	100 kHz	6545	Metal Composite	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.40
		10	$ 1.18
		25	$ 1.08
		50	$ 1.01
		100	$ 0.84
		250	$ 0.77
		500	$ 0.73
	Digi-Reel®	1	$ 1.40
		10	$ 1.18
		25	$ 1.08
		50	$ 1.01
		100	$ 0.84
		250	$ 0.77
		500	$ 0.73
	Tape & Reel (TR)	1000	$ 0.67
		3000	$ 0.65
		5000	$ 0.62
		10000	$ 0.60

Description

General part information

SPM6545VT Series

47 µH Shielded Drum Core, Wirewound Inductor 2.1 A 229mOhm Nonstandard
