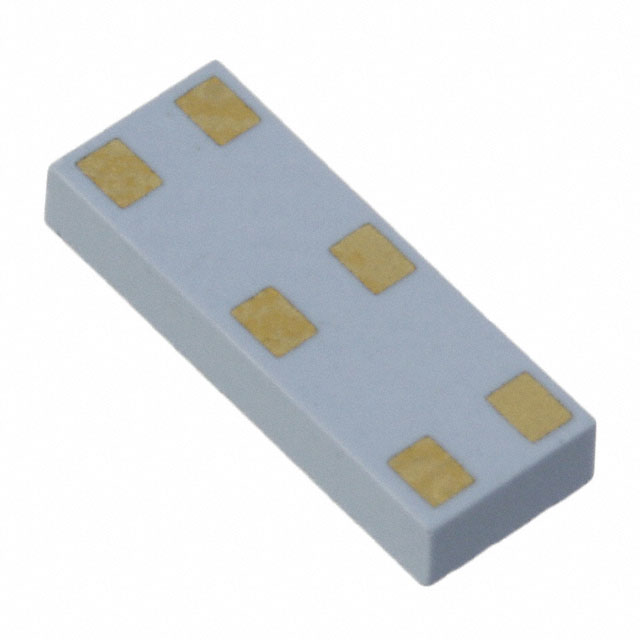

M830310-10K
Kyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M830310-10K
Kyocera AVX
RF ANT 2.4GHZ CHIP SOLDER SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M830310-10K |
|---|---|
| Antenna Type | Chip |
| Applications | WLAN, Bluetooth, Wi-Fi, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 1.39 dBi |
| Height (Max) [Max] | 0.051 " |
| Height (Max) [Max] | 1.3 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 500 mW |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| Digi-Reel® | 1 | $ 1.94 | ||
| Tape & Reel (TR) | 100000 | $ 0.81 | ||
Description
General part information
M830310 Series
RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Chip Solder Surface Mount
