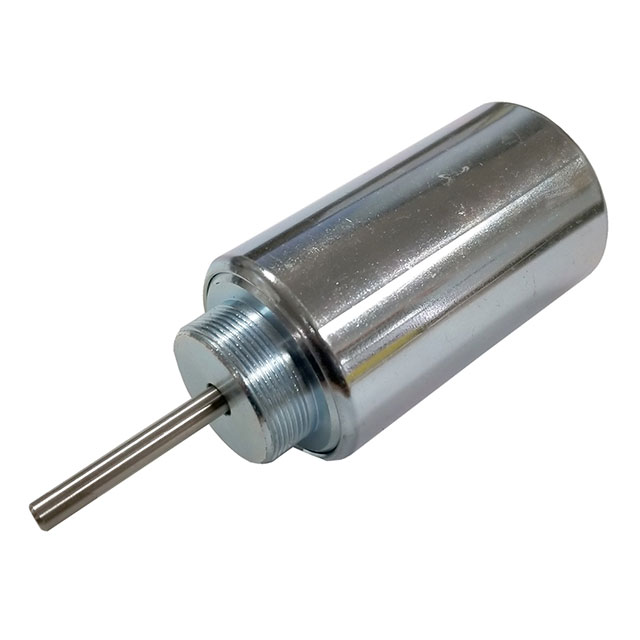

154661-224
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
STA SIZE 150 PUSH - 12 VDC CD
Deep-Dive with AI
Search across all available documentation for this part.
154661-224
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
STA SIZE 150 PUSH - 12 VDC CD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 154661-224 |
|---|---|
| Bushing Thread | 1-27 UNS |
| DC Resistance (DCR) | 9.3 Ohm |
| Diameter - Shaft [diameter] | 0.187 in |
| Diameter - Shaft [diameter] | 4.75 mm |
| Duty Cycle | Continuous |
| Power (Watts) | 17 W |
| Shaft Detail | Round |
| Size / Dimension [diameter] | 1.52 in |
| Size / Dimension [diameter] | 38.6 mm |
| Size / Dimension [x] | 65 mm |
| Size / Dimension [x] | 2.56 in |
| Technology | Electromechanical |
| Termination Style | Wire Leads |
| Type | Tubular, Closed Frame (Push) |
| Voltage - Rated | 12.4 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.82 | |
| 10 | $ 45.30 | |||
| 25 | $ 44.31 | |||
Description
General part information
154661 Series
Continuous Duty Solenoid Closed Frame (Push), Tubular Type Stroke 12.4VDC Panel Mount
