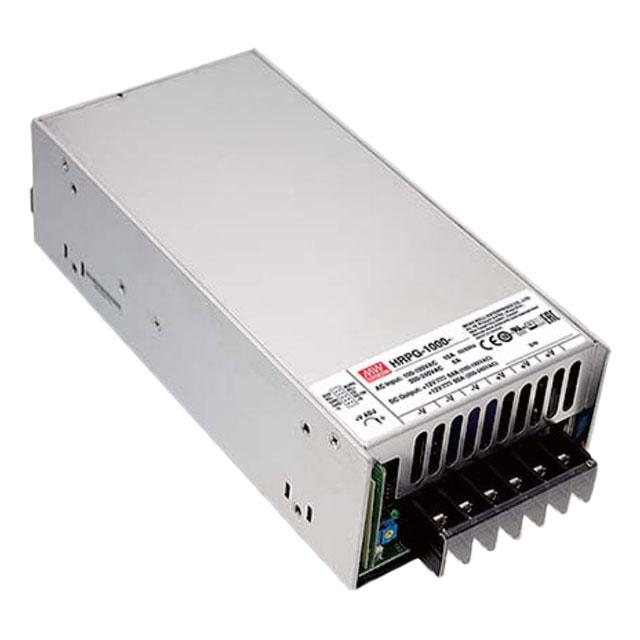

HRPG-1000-24

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 1008W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 1008W

Technical Specifications

Parameters and characteristics for this part

Specification	HRPG-1000-24

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output 1	42 A
Efficiency	93 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	1.008 kW
Size / Dimension [x]	218 mm
Size / Dimension [x]	8.58 "
Size / Dimension [y]	4.13 in
Size / Dimension [y]	105 mm
Size / Dimension [z]	2.5 in
Size / Dimension [z]	63.5 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1	Type	Applications	Current - Output 1	Features	Power (Watts)	Mounting Type	Number of Outputs	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Approval Agency
MEAN WELL USA Inc. HRPG-1000-24	4.13 in	218 mm	8.58 "	2.5 in	63.5 mm	105 mm	24 V	Enclosed	ITE (Commercial)	42 A	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	1.008 kW	Chassis Mount	1	93 %	90 VAC 127 VDC	264 VAC 370 VDC	3000 V	CB CE cURus EAC TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
