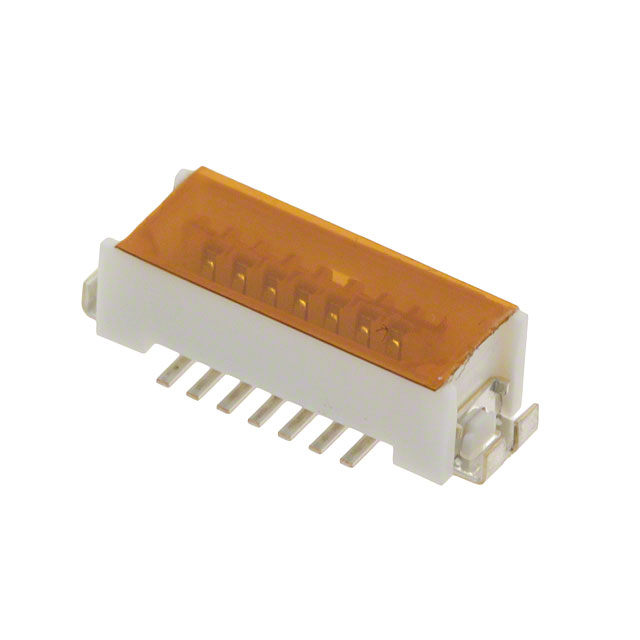

DF9-15S-1V(32)
ActiveHirose Electric USA, Inc.
CONN RCPT 15POS SMD TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF9-15S-1V(32) |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Áin |
| Contact Finish Thickness | 1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights [z] | 4.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
