AS5145A-SS_EK_AB

Active

ams-OSRAM USA INC.

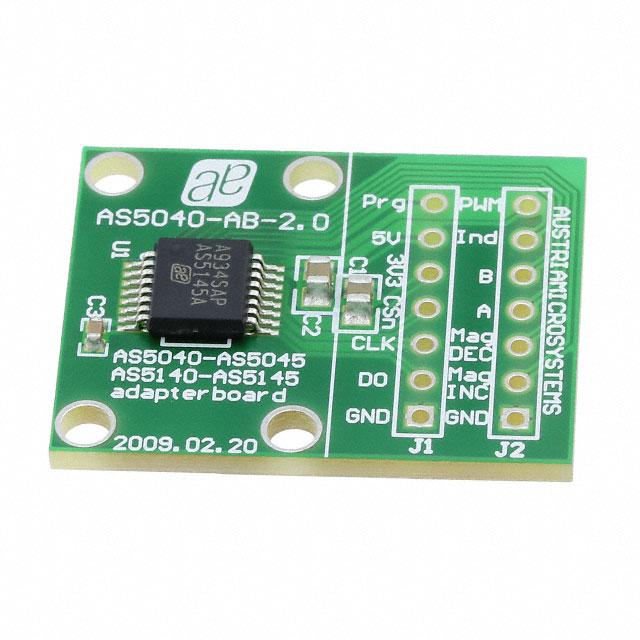

BOARD ADAPTER AS5145A

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

BOARD ADAPTER AS5145A

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Qualification	Encoder Type	Detent	Mounting Type	Termination Style	Pulses per Revolution	Actuator Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Built in Switch	Grade	Sensing Range	Supplied Contents	Interface	Voltage - Supply	Utilized IC / Part	Sensor Type
ams-OSRAM USA INC. AS5145B-HSST SSOP16 LF T&RDP	Quadrature (Incremental)	AEC-Q100	Magnetic		Surface Mount	SMD (SMT) Tab	4096	External Magnet Not Included	3.6 V 5.5 V	3 V 4.5 V		Automotive
ams-OSRAM USA INC. AS5145A-SS_EK_AB													360 °	Board(s)	Serial	3.3 V 5 V	AS5145	Magnetic Rotary Position

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.76

General part information

AS5145 - Magnetic, Rotary Position Sensor Evaluation Board
