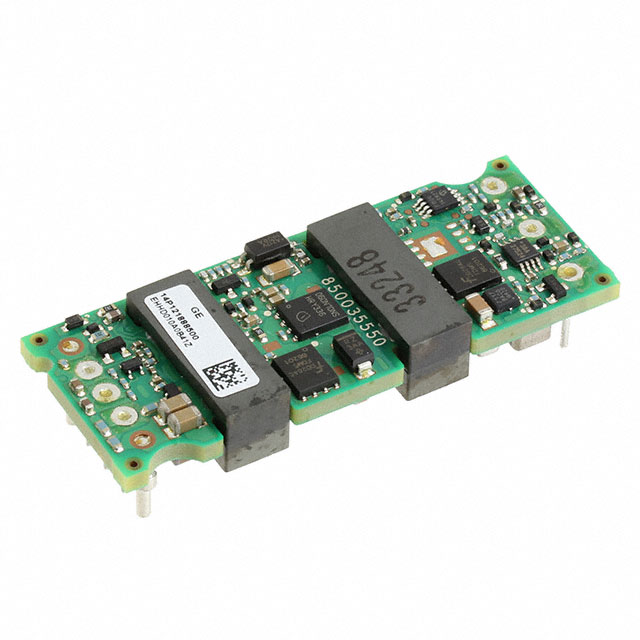

EHHD010A0B41Z

Active

OmniOn Power™

DC DC CONVERTER 12V 120W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 12V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	EHHD010A0B41Z

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	10 A
Efficiency	93 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/8 Brick
Power (Watts)	120 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	8.9 mm
Size / Dimension [z]	0.35 "
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

Part	Current - Output (Max) [Max]	Type	Voltage - Output 1	Voltage - Isolation	Applications	Efficiency	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Control Features	Power (Watts)	Supplier Device Package
OmniOn Power™ EHHD010A0B41-HZ	10 A	Isolated Module	12 V	2250 VDC	ITE (Commercial)	93 %	Through Hole	18 V	75 V	1	1/8 Brick 8-DIP Module	OCP OTP OVP Remote On/Off UVLO	85 °C	-40 °C	22.9 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	Active Low Enable	120 W
OmniOn Power™ EHHD010A0B841-HZ	10 A	Isolated Module	12 V	2250 VDC	ITE (Commercial)	93 %	Through Hole	18 V	75 V	1	Eighth Brick	OCP OTP OVP Remote On/Off UVLO	105 C	-40 °C	22.8 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "		120 W	Eighth Brick
OmniOn Power™ EHHD010A0B641-HZ	10 A	Isolated Module	12 V	2250 VDC	ITE (Commercial)	93 %	Through Hole	18 V	75 V	1	Eighth Brick	OCP OTP OVP Remote On/Off UVLO	105 C	-40 °C	22.8 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "		120 W	Eighth Brick
OmniOn Power™ EHHD010A0B41Z	10 A	Isolated Module	12 V	2250 VDC	ITE (Commercial)	93 %	Through Hole	18 V	75 V	1	1/8 Brick 8-DIP Module	OCP OTP OVP Remote On/Off SCP UVLO	85 °C	-40 °C	22.9 mm	58.4 mm	8.9 mm	0.35 "	2.3 in	0.9 "	Active Low Enable	120 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 10A 18V - 75V Input
