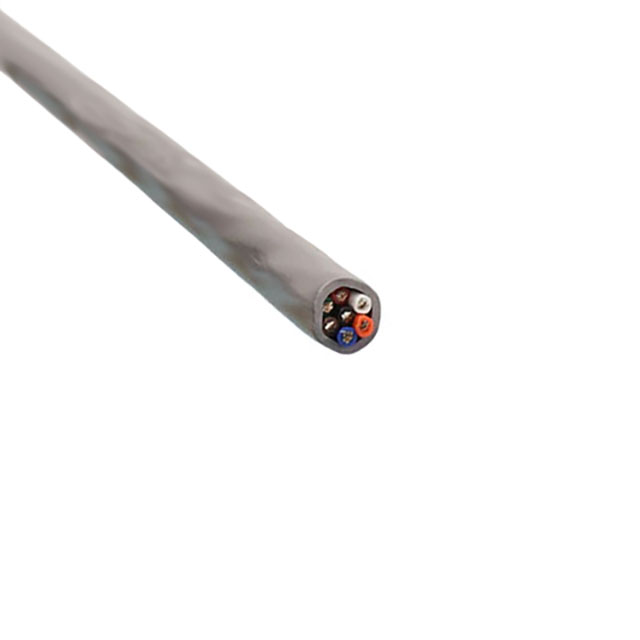

M13407 SL005

Active

ALPHA WIRE

CABLE 7COND 20AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 7COND 20AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M13407 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.257 in
Jacket (Insulation) Diameter [diameter]	6.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Voltage	300 V
Wire Gauge	20 AWG

Part	Ratings	Cable Type	Jacket (Insulation) Material	Wire Gauge	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Conductor Insulation
ALPHA WIRE M13407 SL002	UL Style 2464	Multi-Conductor	Poly-Vinyl Chloride (PVC)	20 AWG	7	28	7	Copper Tinned	Slate	0.257 in	6.53 mm	300 V	-20 C	80 C	500 '	152.4 m
ALPHA WIRE M13407 SL005	UL Style 2464	Multi-Conductor	Poly-Vinyl Chloride (PVC)	20 AWG	7	28	7	Copper Tinned	Slate	0.257 in	6.53 mm	300 V	-20 C	80 C	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Slate 20 AWG 100.0' (30.5m)
