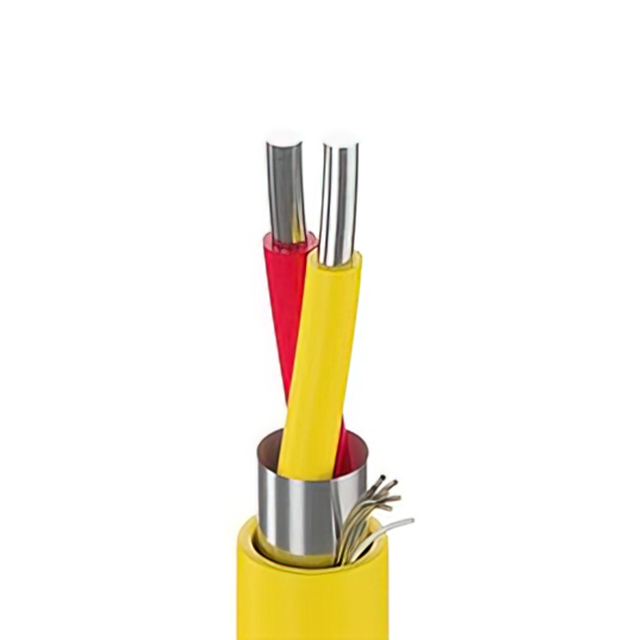

1018A 0045000

Active

Belden Inc.

CABLE 2COND 16AWG YLW SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG YLW SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1018A 0045000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.264 in
Jacket (Insulation) Diameter [diameter]	6.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm
Jacket (Insulation) Thickness	0.037 in
Jacket Color	Yellow
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Thermocouple
Voltage	300 V
Wire Gauge	16 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Number of Conductors	Ratings	Cable Type	Features	Shield Material	Shield Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Voltage	Usage	Shield Coverage
Belden Inc. 1018A 0045000	0.264 in	6.71 mm	Poly-Vinyl Chloride (PVC)	2	UL Style 2464	Multi-Conductor	Drain Wire Rip Cord	Aluminum	Foil	16 AWG	-30 ░C	105 ░C	Solid	Yellow	0.94 mm	0.037 in	Poly-Vinyl Chloride (PVC)	300 V	Thermocouple	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 4.49

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Yellow 16 AWG Foil 5000' (1524.0m)
