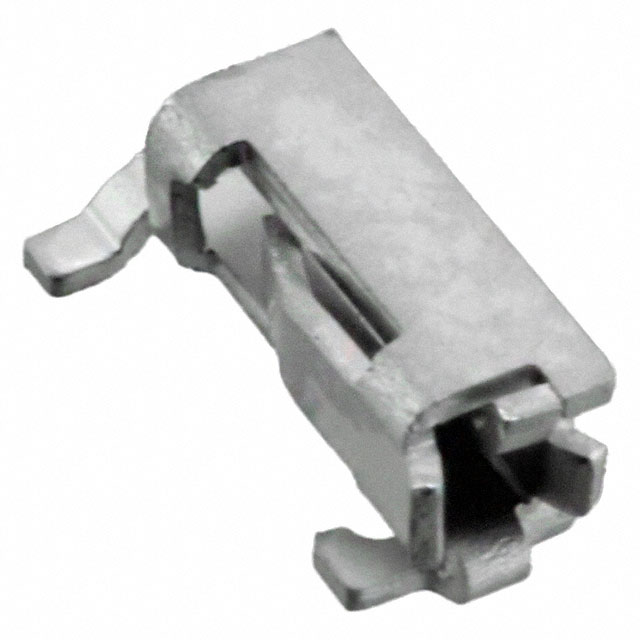

ES10S001JF1R4500
ActiveJAE Electronics
CONN SSL SCKT CONT 24-26AWG SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES10S001JF1R4500
ActiveJAE Electronics
CONN SSL SCKT CONT 24-26AWG SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES10S001JF1R4500 |
|---|---|
| Connector Type | Contact, Socket |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Mating Cycles | 5 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 4500 | $ 0.11 | ||
Description
General part information
ES10S001 Series
24-26 AWG SSL Contact, Socket Solder Surface Mount, Right Angle
