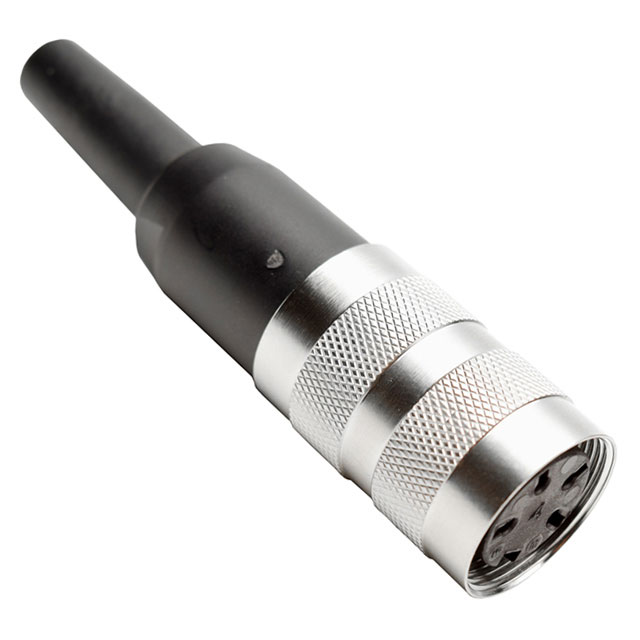

T3301001U

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Orientation	Number of Positions	Voltage Rating	Primary Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Finish	Shell Material	Shielding	Contact Finish - Mating	Shell Size - Insert	Color	Mounting Type	Features	Insert Material	Material Flammability Rating
Amphenol Tuchel Industrial T3303100U	IP40	Keyed	4	250 VDC	Metal	10 A	100 °C	-40 °C	Receptacle Female Sockets	Nickel	Die Cast	Shielded	Silver	M16-4	Silver
Amphenol Tuchel Industrial T3300001U	IP40	Keyed	4	300 VDC	Metal	5 A	100 °C	-40 °C	Male Pins Plug	Nickel	Die Cast	Shielded	Silver	M16-4	Silver	Free Hanging (In-Line)	Strain Relief
Amphenol Tuchel Industrial T3301001U	IP40	Keyed	4	250 VDC	Metal	10 A	100 °C	-40 °C	Female Sockets Plug	Nickel	Die Cast	Shielded	Silver	M16-4	Silver	Free Hanging (In-Line)	Strain Relief
Amphenol Tuchel Industrial T3303000U	IP40	Keyed	4	250 VDC	Metal	5 A	100 °C	-40 °C	Receptacle Female Sockets	Nickel	Die Cast	Shielded	Silver	M16-4	Silver			Thermoplastic	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
