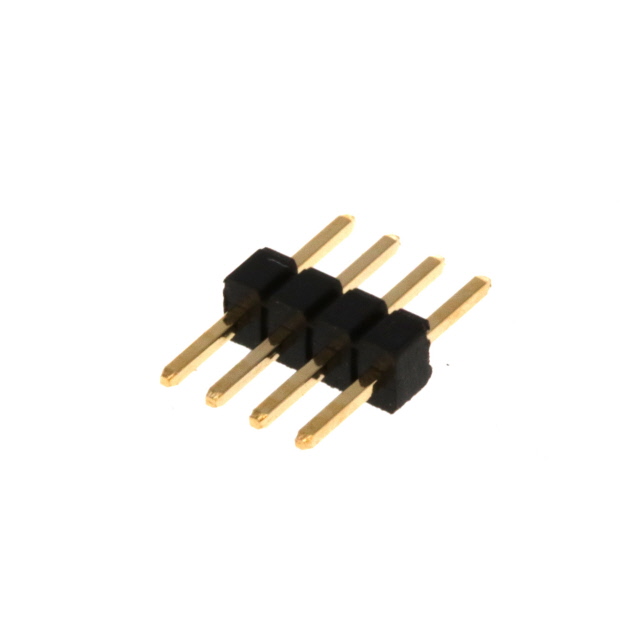

PR20B04VBNN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	PR20B04VBNN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Polyethylene
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	7.3 mm
Overall Contact Length	0.287 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Shrouding	Mounting Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Contact Shape	Number of Rows	Number of Positions	Row Spacing - Mating	Row Spacing - Mating
METZ CONNECT USA Inc. PR20B04VBDN	Unshrouded	Through Hole	7.3 mm	0.287 in	0.11 in	2.79 mm	Push-Pull	1.5 mm	0.059 "	Male Pin	Black	-40 °C	105 ░C	3 mm	0.118 in	All	Flash	Polyethylene	Gold	Copper Zinc	0.05 in	1.27 mm	Solder	Header	Square	2	8	0.05 in	1.27 mm
METZ CONNECT USA Inc. PR20B04VBNN	Unshrouded	Through Hole	7.3 mm	0.287 in	0.11 in	2.79 mm	Push-Pull	1.5 mm	0.059 "	Male Pin	Black	-40 °C	105 ░C	3 mm	0.118 in	All	Flash	Polyethylene	Gold	Copper Zinc	0.05 in	1.27 mm	Solder	Header	Square	1	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.050" (1.27mm)
