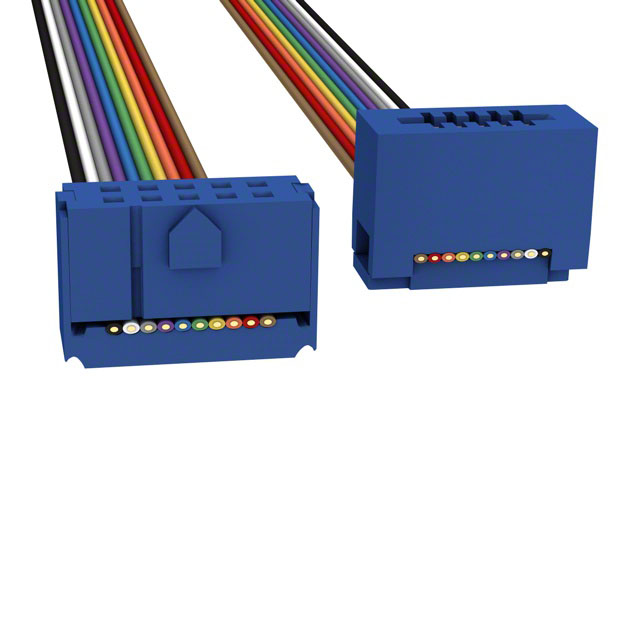

C3CEG-1006M

Active

CW Industries

IDC CABLE - CKC10G/AE10M/CCE10G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC10G/AE10M/CCE10G

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Shielding	Connector Type	Number of Rows	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Cable Termination	Color	Length	Length	Length
CW Industries C3CEG-1018G	457.2 mm	1.5 ft	Gold	10 Áin	0.25 Ám	10	Unshielded	Socket to Card Edge	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC
CW Industries C3CEG-1018M	457.2 mm	1.5 ft	Gold	10 Áin	0.25 Ám	10	Unshielded	Socket to Card Edge	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	Multiple Ribbon
CW Industries C3CEG-1036M	914.4 mm	3 ft	Gold	10 Áin	0.25 Ám	10	Unshielded	Socket to Card Edge	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	Multiple Ribbon
CW Industries C3CEG-1006G			Gold	10 Áin	0.25 Ám	10	Unshielded	Socket to Card Edge	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC		152.4 mm	6 "	0.5 '
CW Industries C3CEG-1006M			Gold	10 Áin	0.25 Ám	10	Unshielded	Socket to Card Edge	2	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	IDC	Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
