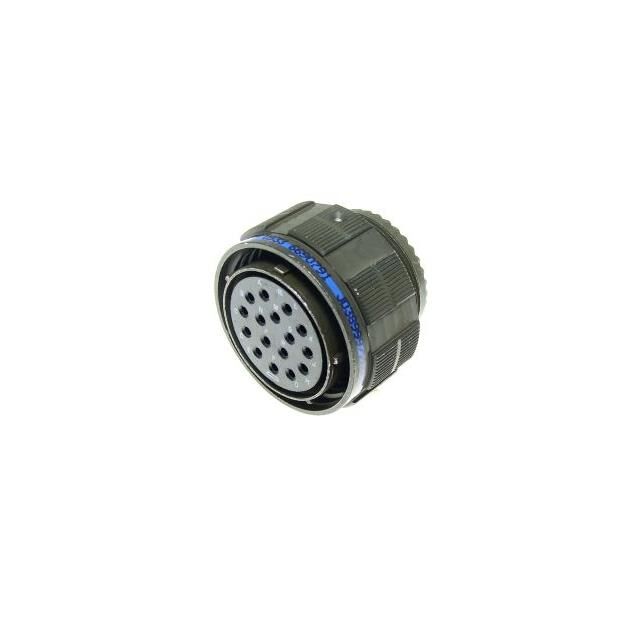

D38999/24KC35SN
ActiveConesys
CONN RCPT FMALE 22POS CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/24KC35SN
ActiveConesys
CONN RCPT FMALE 22POS CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/24KC35SN |
|---|---|
| Applications | Aerospace, Military, Marine, Aviation |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Grade | Military |
| Ingress Protection | Waterproof, IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 22 positions |
| Operating Temperature [Max] | 125 °C, 200 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Passivated, Stainless Steel |
| Shell Material | Stainless Steel |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 13 |
| Shell Size, MIL | C |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 320.89 | |
Description
General part information
D38999/24KC Series
22 Position Circular Connector Receptacle, Female Sockets Crimp
