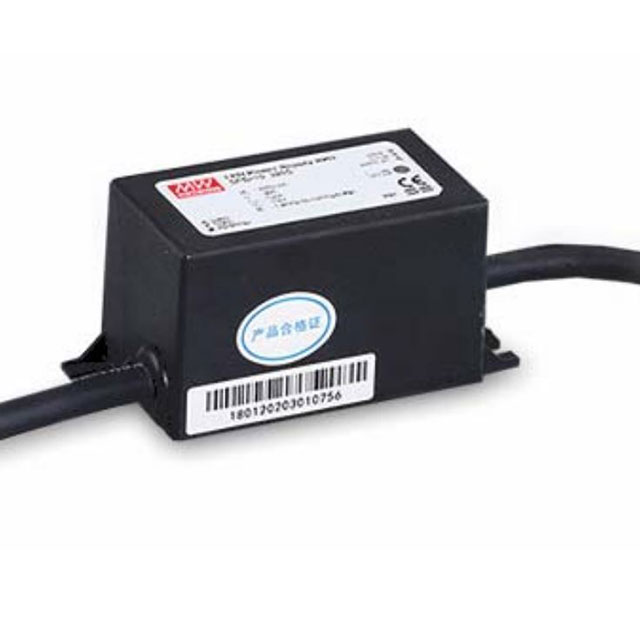

SPD-10-320S

Active

MEAN WELL USA Inc.

SPD 320VAC MCOV 1 POLE

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

SPD 320VAC MCOV 1 POLE

Technical Specifications

Parameters and characteristics for this part

Specification	SPD-10-320S

Approval Agency	CE
Current - Discharge (Max) (8/20µS) [Max]	10 kA
Current - Discharge (Nom) (8/20µS)	5 kA
Features	Thermally Protected
Form	Module Only
Mounting Type	Chassis Mount
Number of Poles	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Voltage - Continuous Operating (Max) (MCOV) [Max]	320 VAC
Voltage - Protection Level (VP) (2416)	1.5 kV

Part	Voltage - Protection Level (VP) (2416)	Operating Temperature [Min]	Operating Temperature [Max]	Form	Current - Discharge (Max) (8/20µS) [Max]	Current - Discharge (Nom) (8/20µS)	Number of Poles	Features	Voltage - Continuous Operating (Max) (MCOV) [Max]	Mounting Type	Approval Agency
MEAN WELL USA Inc. SPD-10-320S	1.5 kV	-40 °C	70 °C	Module Only	10 kA	5 kA	1	Thermally Protected	320 VAC	Chassis Mount	CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SPD 320VAC MCOV 1 POLE
