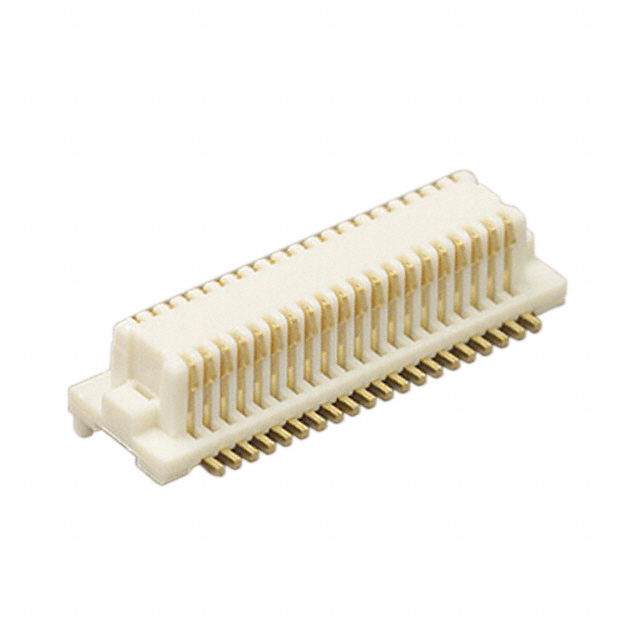

DF12A-40DS-0.5V(81)
ObsoleteHirose Electric USA, Inc.
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF12A-40DS-0.5V(81)
ObsoleteHirose Electric USA, Inc.
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF12A-40DS-0.5V(81) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Board Guide |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Mated Stacking Heights | 5 mm, 3.5 mm, 4 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DF12A Series
40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
