H3CCS-1418M
ActiveAssmann WSW Components
IDC CBL - HHKC14S/AE14M/HHKC14S
Deep-Dive with AI
Search across all available documentation for this part.
H3CCS-1418M
ActiveAssmann WSW Components
IDC CBL - HHKC14S/AE14M/HHKC14S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H3CCS-1418M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Socket |
| Contact Finish | Tin |
| Features | Polarizing Key |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.12 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.76 | |||
| 50 | $ 1.72 | |||
| 100 | $ 1.65 | |||
| 250 | $ 1.49 | |||
| 500 | $ 1.37 | |||
| 1000 | $ 1.18 | |||
| 2500 | $ 1.10 | |||
Description
General part information
H3CCS-14 Series

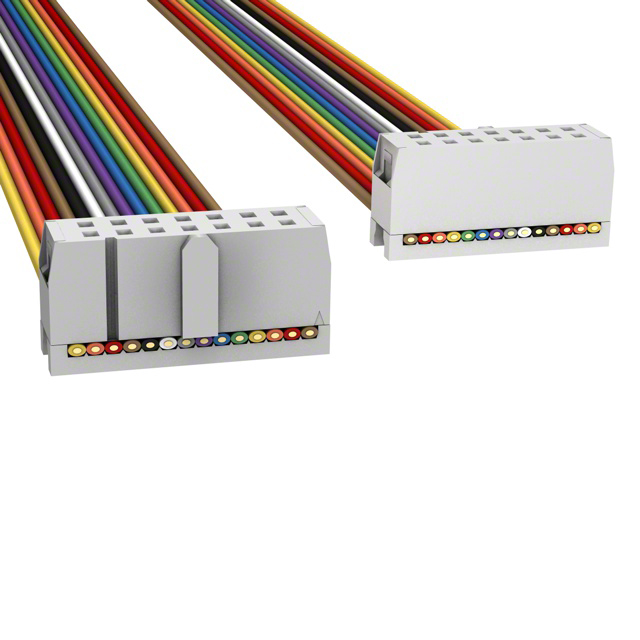

14 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)
