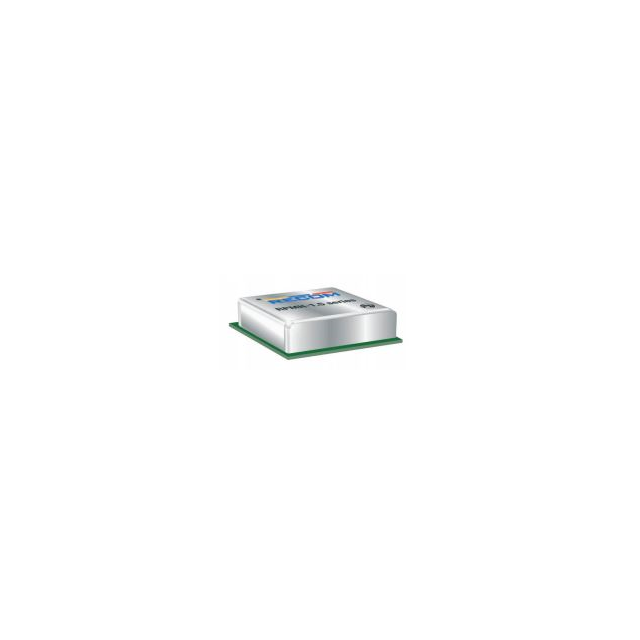

RPMH3.3-1.5-CT

Active

RECOM Power

DC DC CONVERTER 3.3V

Search across all available documentation for this part.

Active

RECOM Power

DC DC CONVERTER 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	RPMH3.3-1.5-CT

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1.5 A
Efficiency	73 %
Features	Remote Sense, Adjustable Output
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	25-BLGA Module
Size / Dimension [x]	12.2 mm
Size / Dimension [x]	0.48 in
Size / Dimension [y]	0.48 in
Size / Dimension [y]	12.2 mm
Size / Dimension [z]	0.15 "
Size / Dimension [z]	3.8 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	5 V
Voltage - Output 1	3.3 V

Part	Current - Output	Main Purpose	Voltage - Output	Supplied Contents	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Outputs and Type	Outputs and Type	Voltage - Output 1	Package / Case	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Current - Output (Max) [Max]	Mounting Type	Type	Voltage - Input (Min) [Min]	Features	Operating Temperature [Min]	Operating Temperature [Max]
RECOM Power RPMH3.3-1.5-EVM-1	1.5 A	DC/DC Step Down	3.3 V	Board(s)	60 V	5 V	Fully Populated	Non-Isolated	1
RECOM Power RPMH3.3-1.5										3.3 V	25-BLGA Module	73 %	0.48 in	0.15 "	12.2 mm	0.48 in	3.8 mm	12.2 mm	1	60 V	ITE (Commercial)	1.5 A	Surface Mount	Non-Isolated PoL Module	5 V	Adjustable Output Remote Sense	-40 °C	100 °C
RECOM Power RPMH3.3-1.5-CT										3.3 V	25-BLGA Module	73 %	0.48 in	0.15 "	12.2 mm	0.48 in	3.8 mm	12.2 mm	1	60 V	ITE (Commercial)	1.5 A	Surface Mount	Non-Isolated PoL Module	5 V	Adjustable Output Remote Sense	-40 °C	100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 1.5A 5V - 60V Input
