PSAC05R-050L6-R-C2

Active

Phihong USA

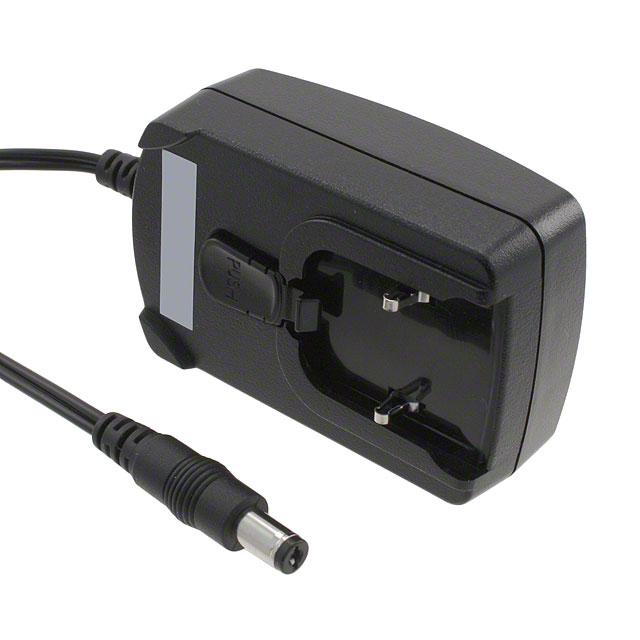

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSAC05R-050L6-R-C2

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSAC05R-050L6-R-C2

Applications	ITE (Commercial)
Approval Agency	IEC, AS/NZS, PSE, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	30 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector [diameter]	2.5 mm, 5.5 mm
Output Connector [x]	10 mm
Polarization	Positive Center
Power (Watts)	5 W
Region Utilized	International
Size / Dimension [x]	71.7 mm
Size / Dimension [x]	2.82 "
Size / Dimension [y]	45 mm
Size / Dimension [y]	1.77 "
Size / Dimension [z]	1.17 in
Size / Dimension [z]	29.8 mm
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.265 lb
Weight	120.2 g

PSAC05 Series

Part	Efficiency	Input Type	Weight	Weight	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Voltage - Output	Approval Agency	Current - Output (Max) [Max]	Output Connector	Power (Watts)	Input Connector	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Region Utilized	Form	No Load Power Consumption [Max]	Applications	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Output Connector [z]	Output Connector [diameter]	Output Connector [x]
Phihong USA PSAC05R-050L6M	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)	0.265 lb	120.2 g	90 VAC	264 VAC	1.5 m	59 in	5 V	CB CE cULus TUVgs	1 A	USB Micro	5 W	Multi-Blade	45 mm	71.7 mm	2.82 "	1.77 "	1.17 in	29.8 mm	International	Wall Mount (Class II)	30 mW	ITE (Commercial)	60950-1 62368-1	40 °C	0 °C
Phihong USA PSAC05R-050L6B	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)	0.265 lb	120.2 g	90 VAC	264 VAC	1.5 m	59 in	5 V	CB CE cULus TUVgs	1 A	USB Mini	5 W	Multi-Blade	45 mm	71.7 mm	2.82 "	1.77 "	1.17 in	29.8 mm	International	Wall Mount (Class II)	30 mW	ITE (Commercial)	60950-1 62368-1	40 °C	0 °C
Phihong USA PSAC05R-050L6	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)	0.265 lb	120.2 g	90 VAC	264 VAC	1.5 m	59 in	5 V	CB CE cULus TUVgs	1 A	Barrel Plug	5 W	Multi-Blade	45 mm	71.7 mm	2.82 "	1.77 "	1.17 in	29.8 mm	International	Wall Mount (Class II)	30 mW	ITE (Commercial)	60950-1 62368-1	40 °C	0 °C	Positive Center	10 mm	2.1 mm 5.5 mm
Phihong USA PSAC05R-050QL6-R
Phihong USA PSAC05R-050L6-R-C2	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)	0.265 lb	120.2 g	90 VAC	264 VAC	1.5 m	59 in	5 V	AS/NZS cULus IEC PSE	1 A		5 W	Multi-Blade	45 mm	71.7 mm	2.82 "	1.77 "	1.17 in	29.8 mm	International	Wall Mount (Class II)	30 mW	ITE (Commercial)	60950-1 62368-1	40 °C	0 °C	Positive Center		2.5 mm 5.5 mm	10 mm
Phihong USA PSAC05A-050L6M	Level VI	Fixed Blade	0.188 lb	85.28 g	90 VAC	264 VAC	1.5 m	59 in	5 V	CB cULus PSE	1 A	USB Micro	5 W	NEMA 1-15P	28 mm	66.5 mm	2.62 in	1.1 in	1.42 in	36 mm	North America	Wall Mount (Class II)	75 mW	ITE (Commercial)		40 °C	0 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.29

Description

General part information

PSAC05 Series

5V 5 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
